HIGH-PERFORMANCE FIBRE
DYNEEMA® ROPE
Technical rope options using Dyneema® SK75, SK78 and SK99 fibres where specified in the source catalogues.
High-performance rope materials
Compare Dyneema® rope options by application and technical requirement.
IMEXABLE sources technical rope products using Dyneema® fibre for marine, towing, mooring, winching, recovery and other demanding applications. The exact fibre grade, construction and technical values are shown from the relevant source catalogue data.
Selected catalogue products
Fast Ropes · Tender Towing · Leisure Marine · Commercial Marine

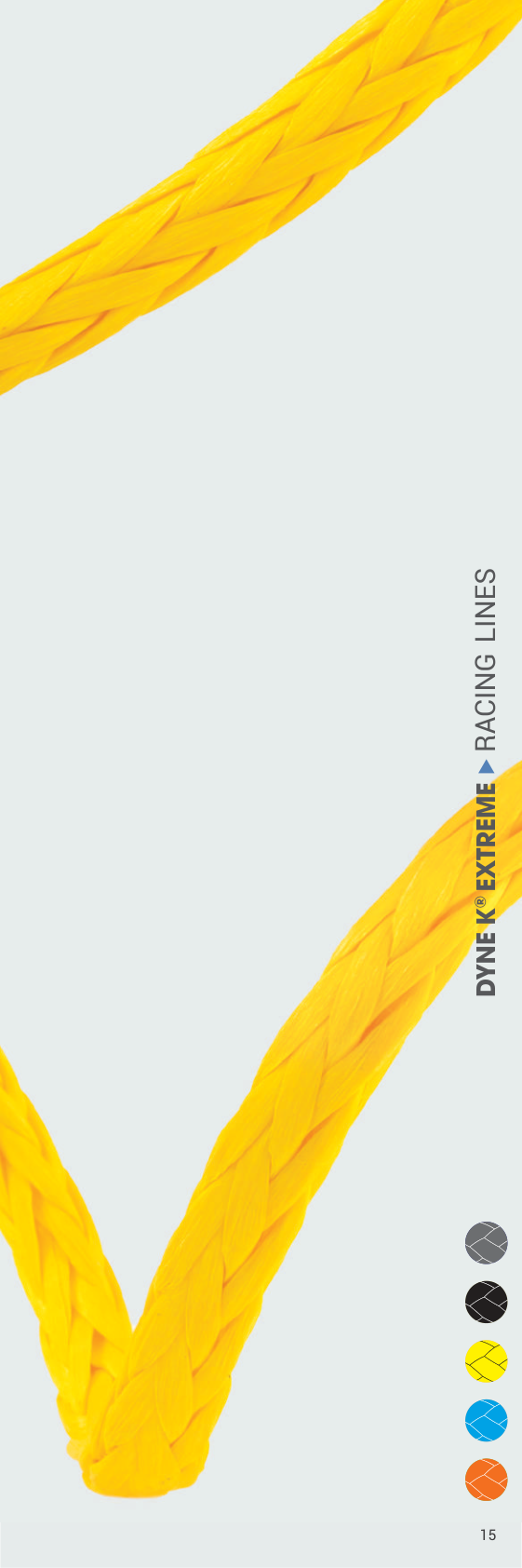

DYNE K® EXTREME
Coated: Dyneema® SK 78/99 Fiber · Coated: Dyneema® SK 78 / 99 Fiber · Coated Dyneema® SK75/78
- Construction
- 12 Strand Braided
- Variants
- 49
- Diameter
- 2–96 mm
- Breaking load
- 490–662290 kgf
- Weight
- 0.25–462.4 kg/100m
- Markets
- Fast Ropes, Tender Towing, Leisure Marine, Commercial Marine
Commercial Marine

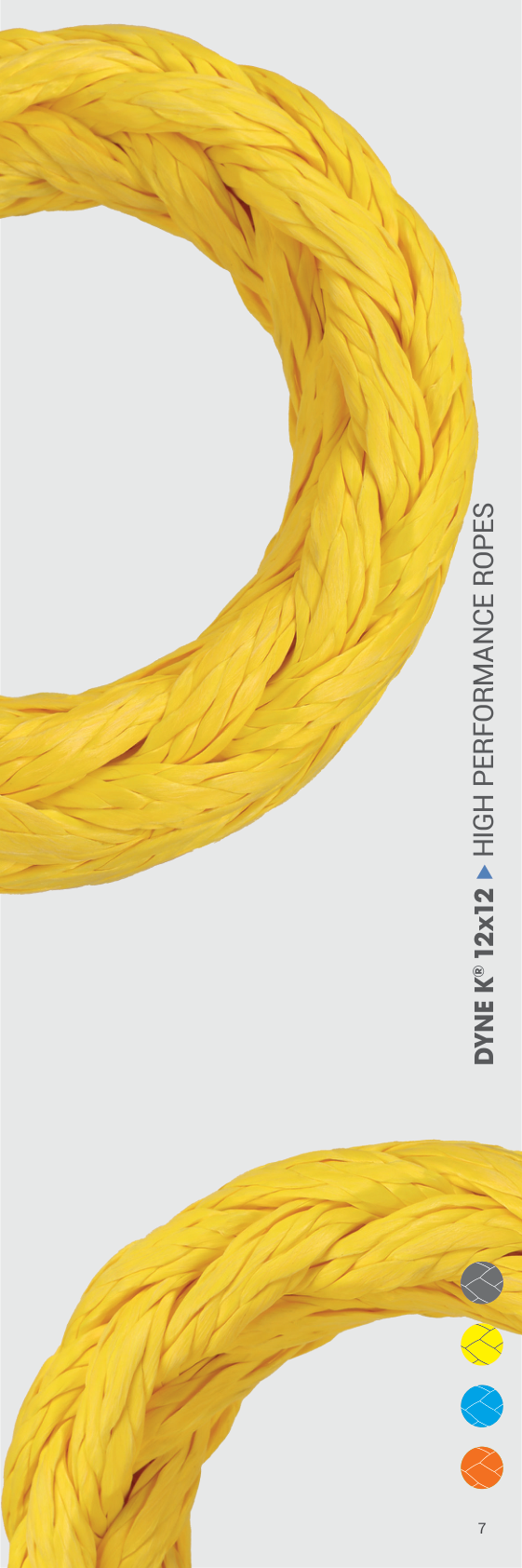

DYNE K® 12x12
Coated Dyneema® SK75/78
- Construction
- 12x12 Strand Braided
- Variants
- 13
- Diameter
- 40–88 mm
- Breaking load
- 132300–631590 kgf
- Weight
- 98–478 kg/100m
- Markets
- Commercial Marine
Commercial Marine

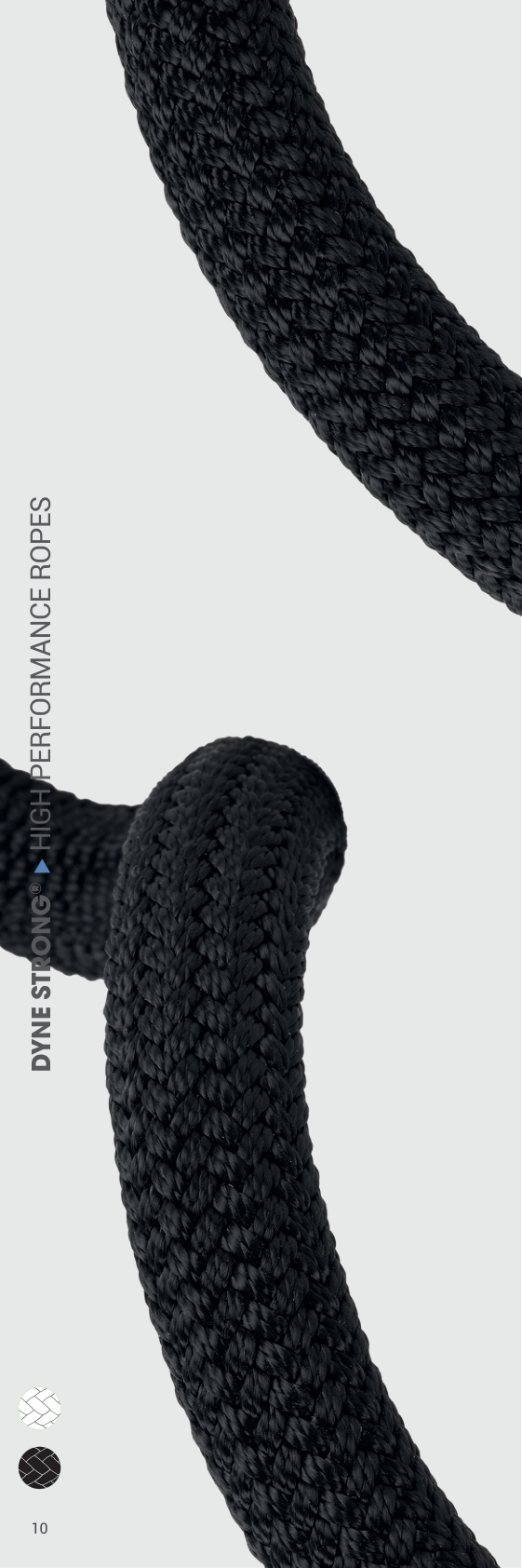

DYNE STRONG®
HT Polyester Fiber · Coated Dyneema® SK75/78
- Construction
- 32 Plaited / 12 Plaited
- Variants
- 18
- Diameter
- 20–60 mm
- Breaking load
- 24890–256970 kgf
- Weight
- 25.7–224.65 kg/100m
- Markets
- Commercial Marine
Commercial Marine

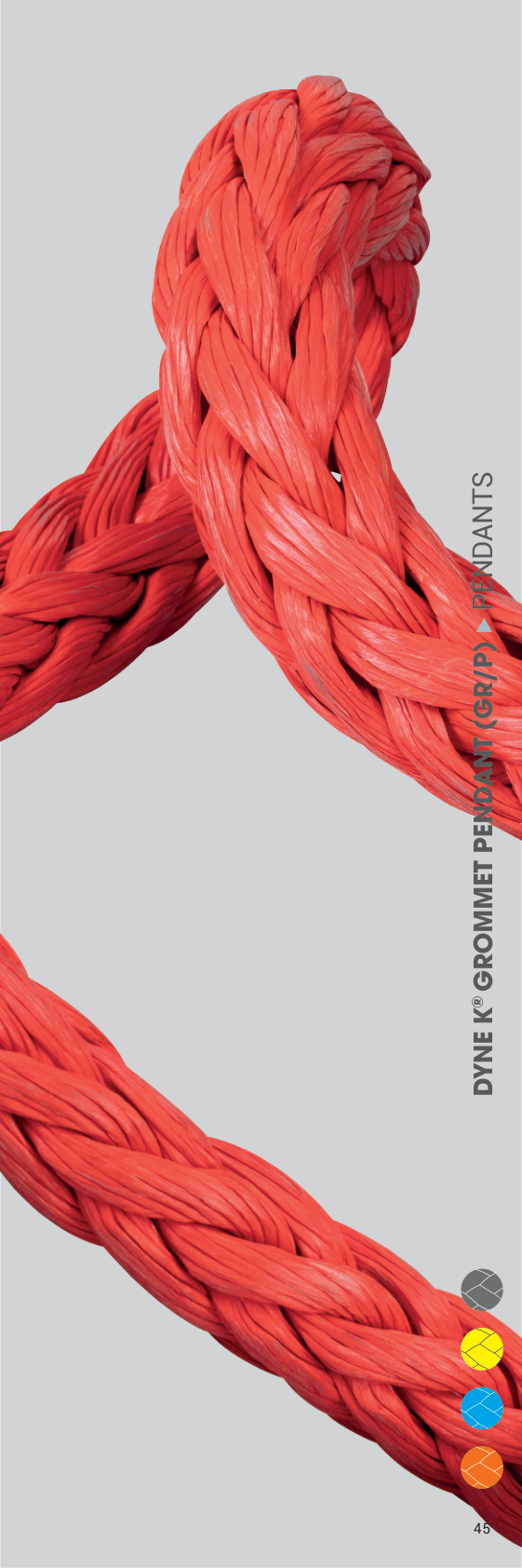

DYNE K® GR/P
Coated Dyneema® SK 75/78 DYNE K® GROMMET PENDANT (GR/P)
- Construction
- 12 Strand Braided
- Variants
- 15
- Diameter
- 28–96 mm
- Breaking load
- 100344–886752 kgf
- Weight
- —
- Markets
- Commercial Marine
Off-Road

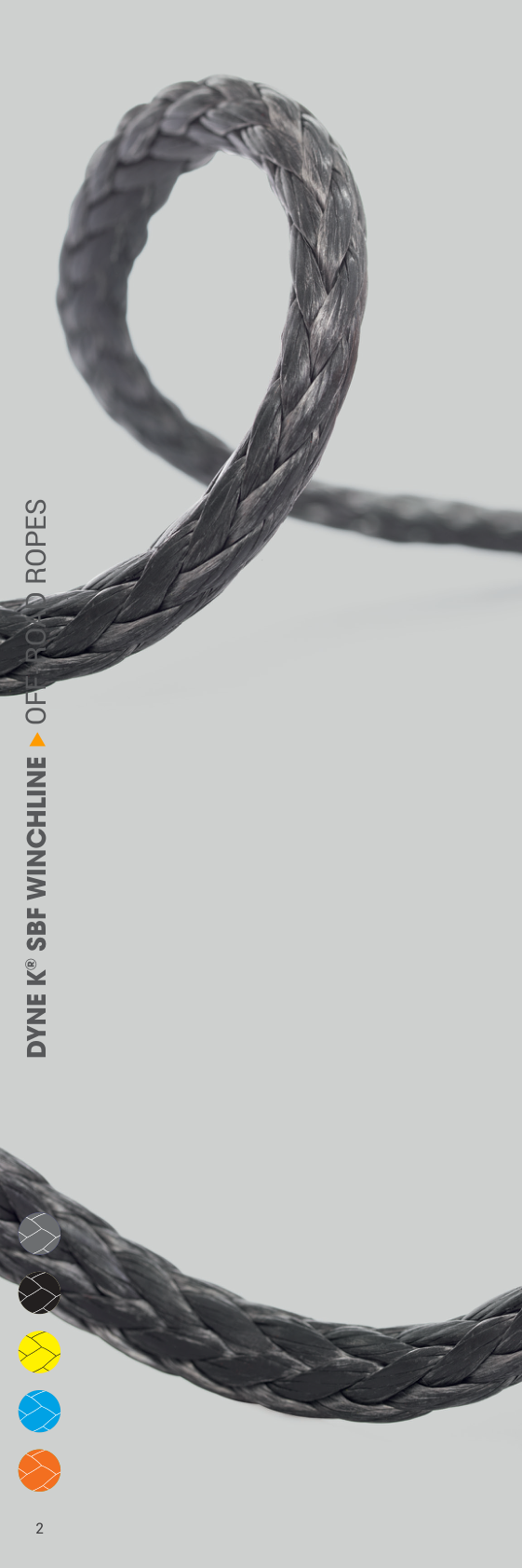

DYNE K® SBF WINCHLINE
Coated: Dyneema® SK 78/99
- Construction
- 12 Strand Braided
- Variants
- 6
- Diameter
- 6–16 mm
- Breaking load
- 3750–31294 kgf
- Weight
- 2.3–15.1 kg/100m
- Markets
- Off-Road
Leisure Marine

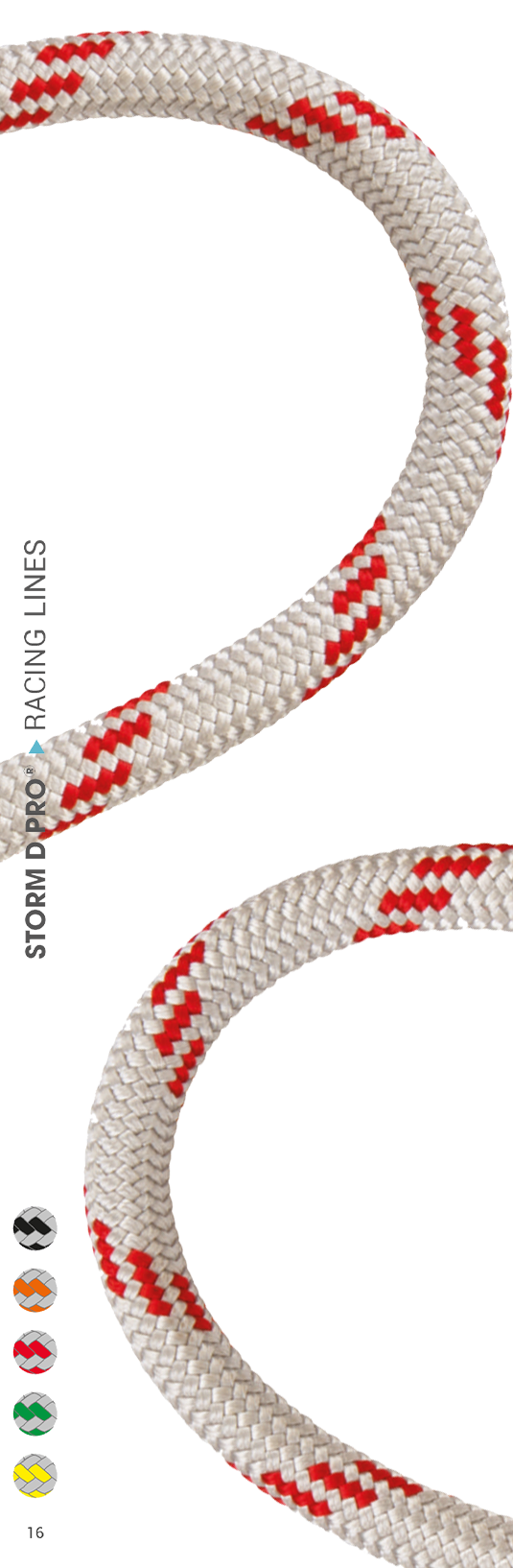

STORM D PRO®
HT Polyester Fiber · Coated Dyneema® SK78/99 Fiber
- Construction
- 24-32 Plaited / 12 Plaited
- Variants
- 9
- Diameter
- 8–24 mm
- Breaking load
- 3600–34750 kgf
- Weight
- 4.65–33.45 kg/100m
- Markets
- Leisure Marine
