Technical rope data

ARAMID K

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter3–6 mm
Weight0.55–2.15 kg/100m
Breaking load475–1600 kgf
Material
100% Twaron® Fiber
Construction
8 Plaited (Hollow Braid)
Source catalogues
Leisure Marine
Related markets
Leisure Marine

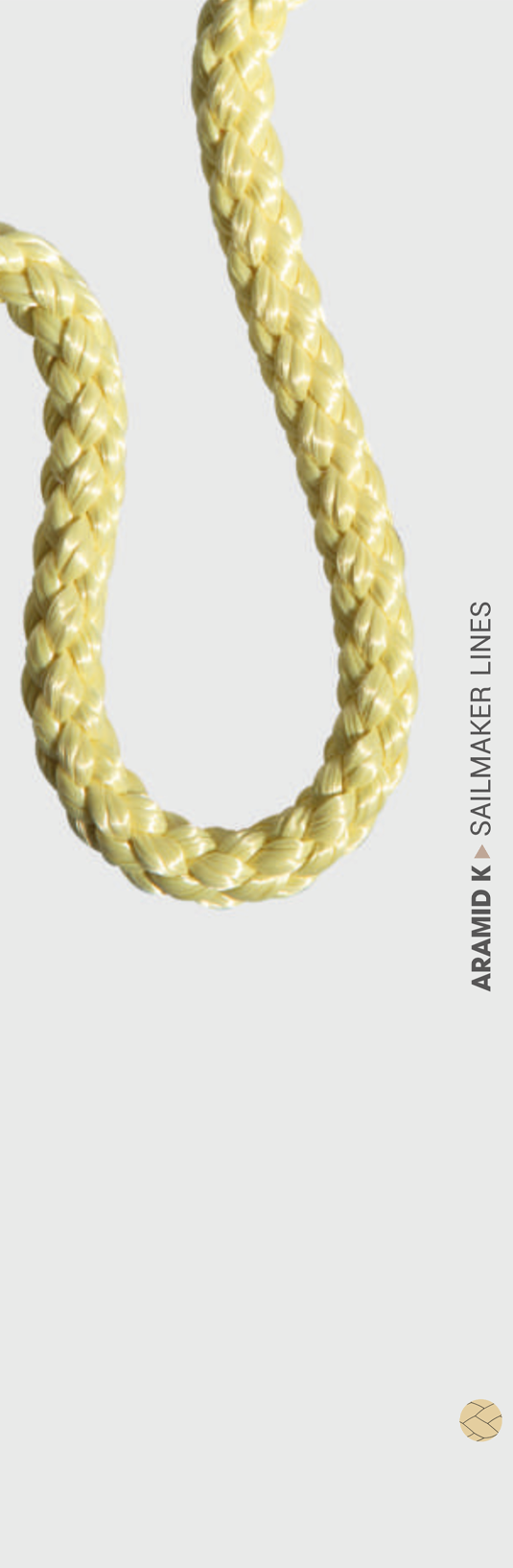

ARAMID K catalogue product image

Applications

Applications

Leech Line

Benefits

Benefits

No Creep Under Constant LoadsExcellent Heat ResistanceExtremely Low Stretch

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 85

Specific Gravity
Approx. 1,44 kg/dm³
UV Resistance
Poor
Chemical Resistance
Excellent
Melting Point
500oC
Critical Temperature
350oC
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %2-5
Wet Abrasion
Excellent
Length
100-200 m Plastic Spool
Material
100% Twaron® Fiber
Construction
8 Plaited (Hollow Braid)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.55 kg/100m475 kgf
4 mm1.1 kg/100m850 kgf
5 mm1.6 kg/100m1200 kgf
6 mm2.15 kg/100m1600 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
