IMEX

Technical rope data

ARBOR FLEX® II

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12.7 mm
Weight11.68 kg/100m
Breaking load3500 kgf
Material
HT Polyester Fiber; HT Polyamide Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

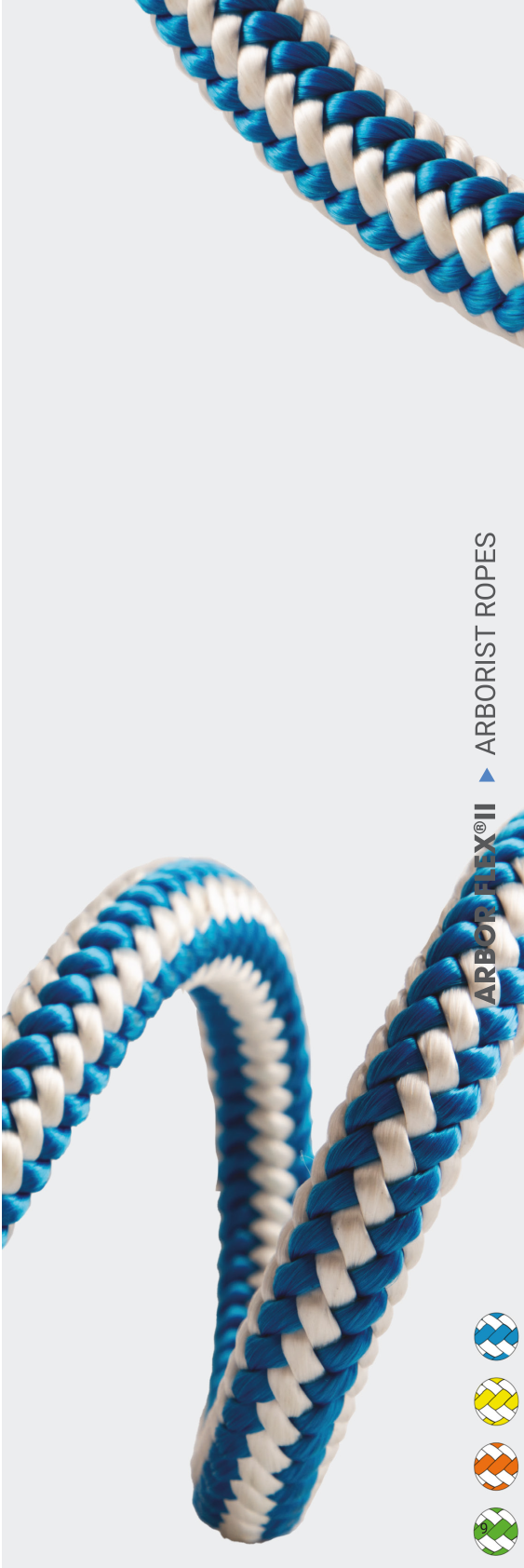

ARBOR FLEX® II catalogue product image

Applications

Applications

Climbing Line

Benefits

Benefits

Easy Handling/FlexibilityExcellent Knot-Holding CapabilityLow StretchSized for Easy GripWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 11

Type
A
Specific Gravity
1,31 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Good
Dry Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12.7 mm11.68 kg/100m3500 kgf

Arborist Ropes 2025 · PDF 11

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
12.72.773

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
