IMEX

Technical rope data

ASPEN STATIC®

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter11.7 mm
Weight9.7 kg/100m
Breaking load3200 kgf
Material
HT Polyester Fiber; HT Polyamide Fiber
Construction
32 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

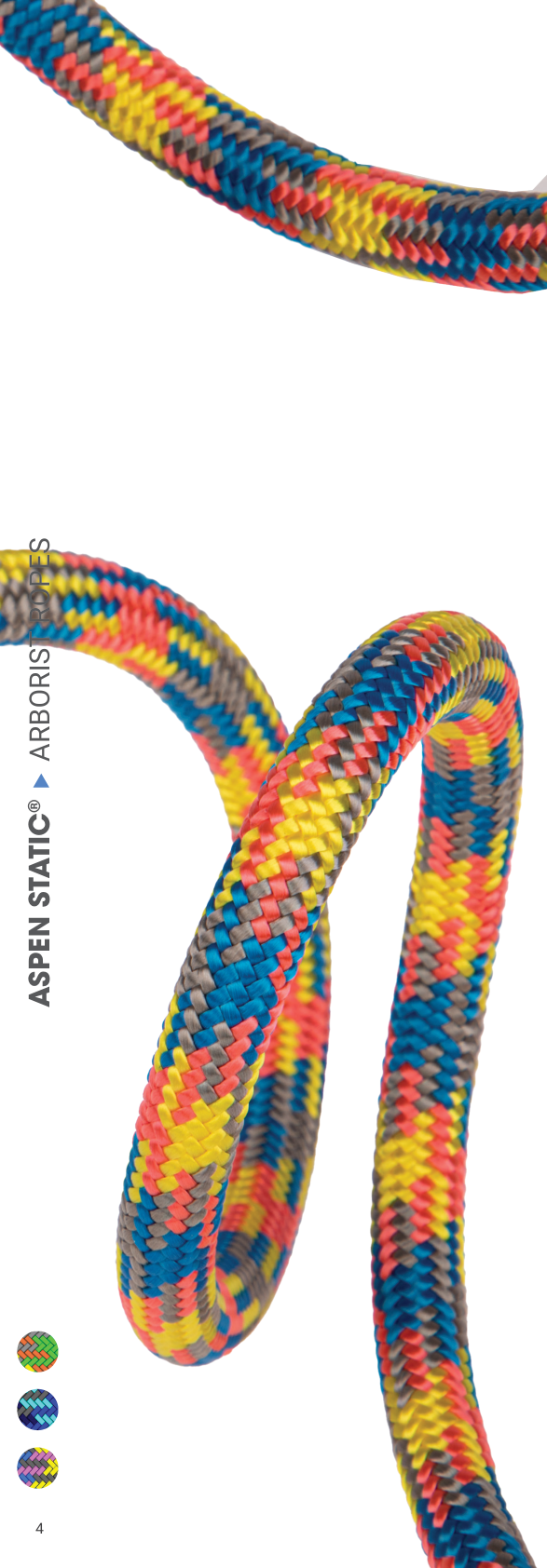

ASPEN STATIC® catalogue product image

Applications

Applications

SRT Climbing Line (Single Rope Technique)

Benefits

Benefits

Ultra Low-StretchTight JacketSRT AscentWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 6

Type
A
Specific Gravity
1,25 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Good
Dry Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
11.7 mm9.7 kg/100m3200 kgf

Arborist Ropes 2025 · PDF 6

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
11.71.946

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
