IMEX

Technical rope data

BRAVON SWIFT MCF

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12–19 mm
Weight11.9–29.7 kg/100m
Breaking load4500–8200 kgf
Material
Coated HT Polyester Fiber; HT Polyamide Fiber
Construction
20-24 Plaited / 16 Plaited
Source catalogues
Arborist
Related markets
Arborist

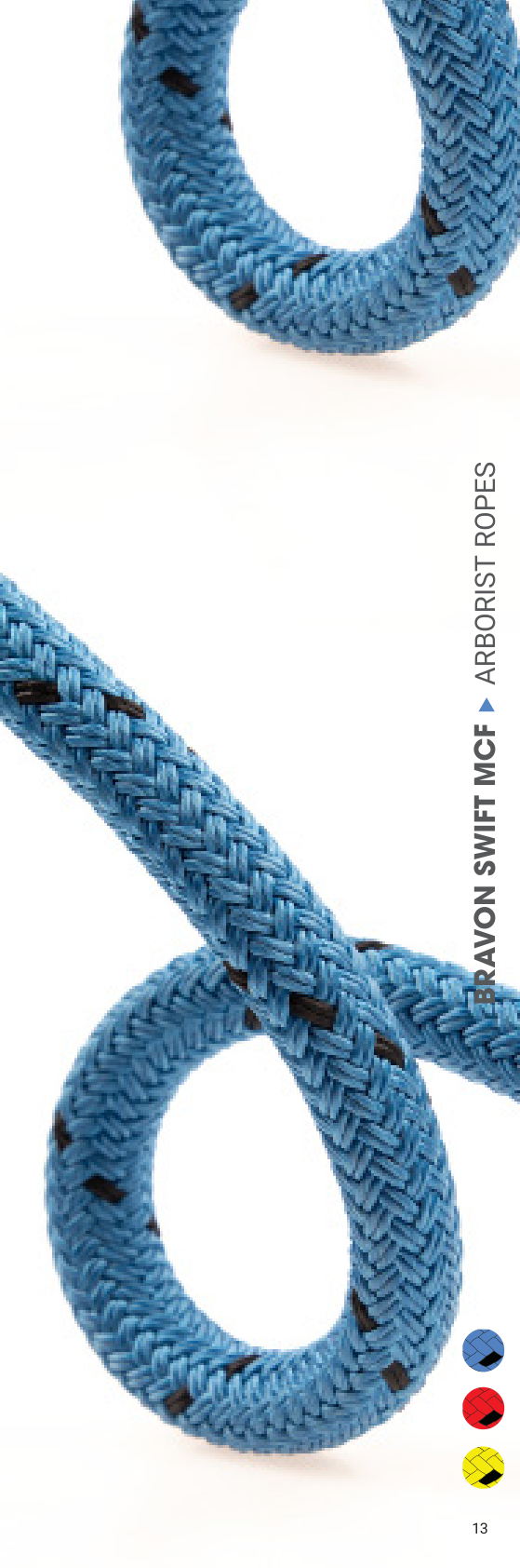

BRAVON SWIFT MCF catalogue product image

Applications

Applications

Rigging Line

Benefits

Benefits

Excellent Abrasion ResistanceGood GripEnergy AbsorptionWater & Dirt Resistant

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 15

Specific Gravity
1,27-1,28 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
218°C-256°C
Critical Temperature
130°C
Working Stretch
<20%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12 mm11.9 kg/100m4500 kgf
14 mm16.55 kg/100m5600 kgf
16 mm20.3 kg/100m6100 kgf
19 mm29.7 kg/100m8200 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
