Commercial Marine Ropes 2024 · PDF 63
- Length
- Standard Length is 365 cm
- Availability Note
- Other Colours on Request
- Material
- 100% HT Cordura® Fabric + Velcro Strip
Technical rope data

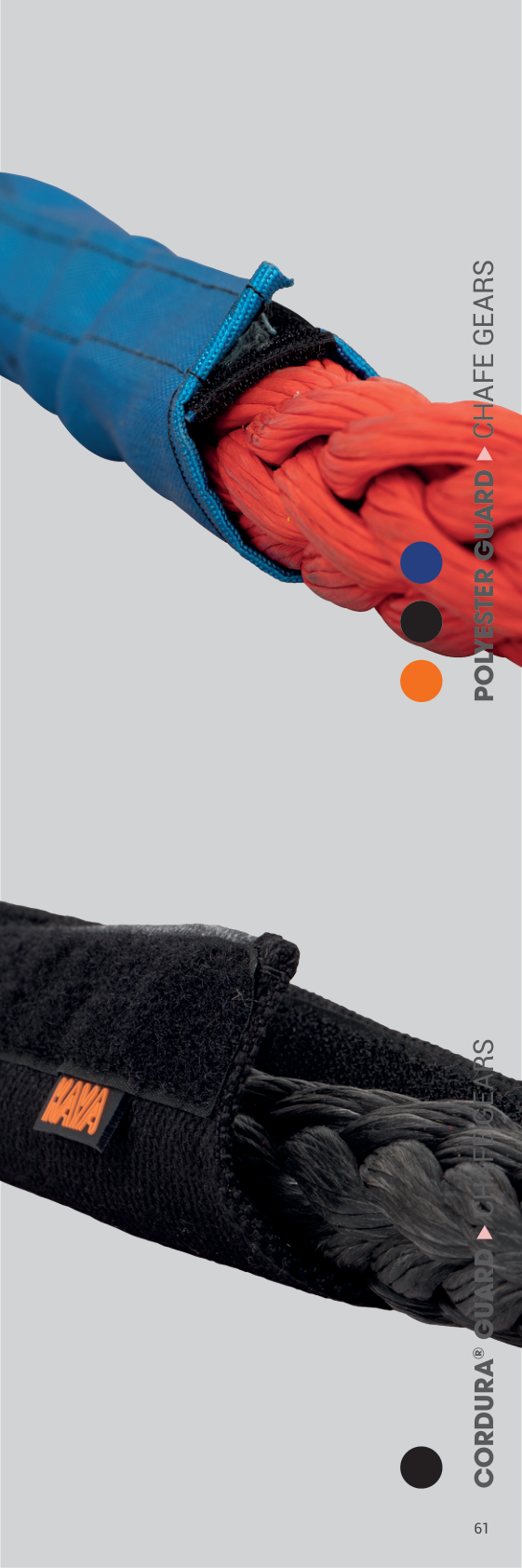

CORDURA® GUARD
Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.
Source catalogue data
Technical rope data
Diameter—
Weight—
Breaking load—
- Material
- 100% HT Cordura® Fabric + Velcro Strip
- Construction
- —
- Source catalogues
- Commercial Marine
- Related markets
- Commercial Marine
Applications
Applications
Chafe Protection
Benefits
Benefits
Very Good Abrasion ResistanceMildew ResistantEasy to Install & RemoveHigh Flexibility
Source catalogue data
Technical rope data
Technical variants
Catalogue variant data
Compare the catalogue ranges first, then review the exact variants below.
Commercial Marine Ropes 2024 · PDF 63
| Size | Rope diameter (mm) | Guard thickness (mm) | Standard length (cm) | Rope diameter (inch) | Guard thickness (inch) | Standard length (feet) |
|---|---|---|---|---|---|---|
| A | 24-36 | 1,5 | 365 | 1"—1-1/2" | 1/16" | 12,00 |
| B | 40-52 | 1,5 | 365 | 1-5/8"—2-1/8" | 1/16" | 12,00 |
| C | 56-64 | 1,5 | 365 | 2-1/4"—2-5/8" | 1/16" | 12,00 |
| D | 68-80 | 1,5 | 365 | 2-3/4"—3-1/4" | 1/16" | 12,00 |
Technical values below are taken from the source catalogue data used by ROPE FINDER.
