Technical rope data

DINGHY PILOT MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter6–12 mm
Weight2.8–10.8 kg/100m
Breaking load850–3500 kgf
Material
HT Polyester & Texturized Polyamide Fiber; HT Polyester Fiber
Construction
20-24 Plaited / 8 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

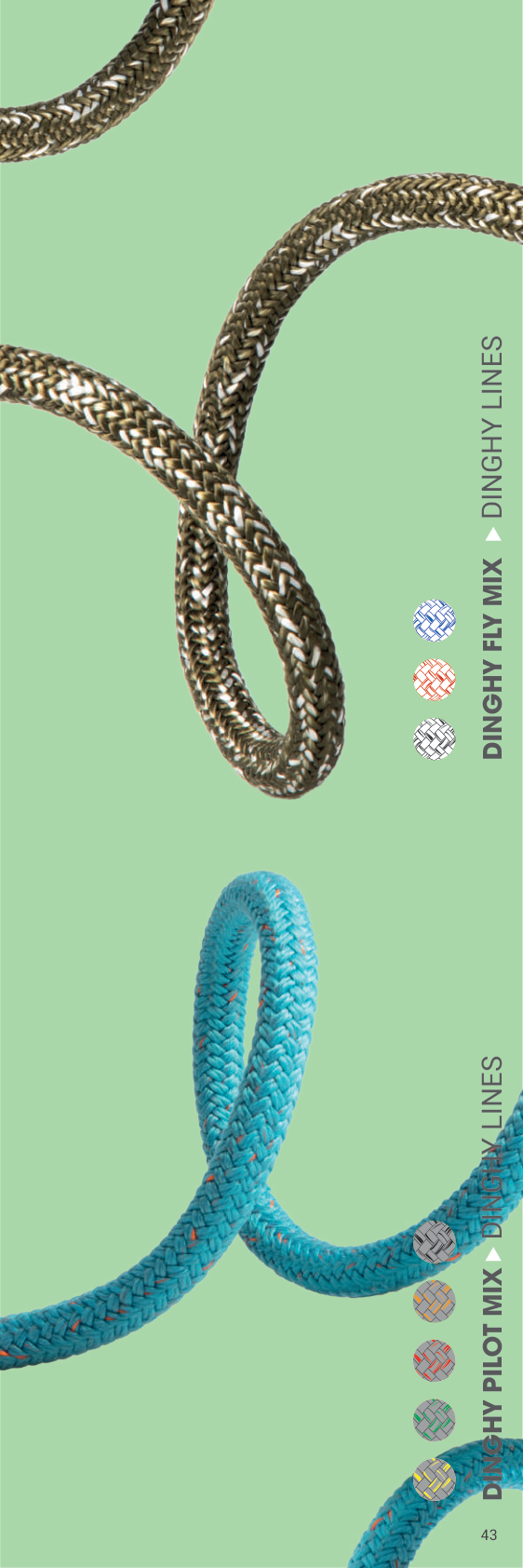

DINGHY PILOT MIX catalogue product image

Applications

Applications

Main SheetMain HalyardControl Lines

Benefits

Benefits

Low StretchVery Good Abrasion ResistanceVery Good GripEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 45

Specific Gravity
1,22-1,24 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
165-256oC
Critical Temperature
80oC
Working Stretch
<5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
100-200 m Plastic Spool
Material
Cover: HT Polyester & Texturized Polyamide Fiber Core: HT Polyester Fiber
Construction
Cover: 20-24 Plaited, Core: 8 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm2.8 kg/100m850 kgf
8 mm4.8 kg/100m1500 kgf
10 mm7.6 kg/100m2300 kgf
12 mm10.8 kg/100m3500 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
