IMEX

Technical rope data

DINGHY ROCK V® MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–7 mm
Weight1.1–3.7 kg/100m
Breaking load500–2000 kgf
Material
HT Polyester Fiber; Coated Vectran® Fiber
Construction
20-24 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

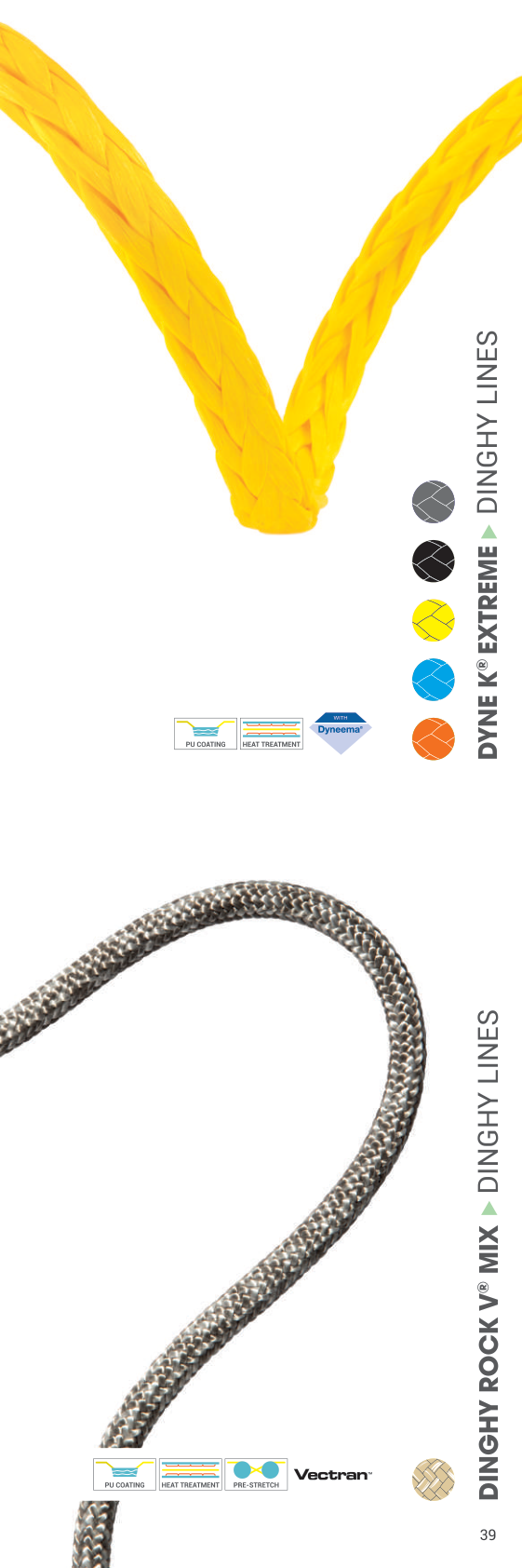

DINGHY ROCK V® MIX catalogue product image

Applications

Applications

Main Halyard

Benefits

Benefits

Good Performance in JammersHigh Breaking LoadExtremely Low StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 41

Specific Gravity
Approx. 1,38 kg/dm3
UV Resistance
Poor
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<1%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
100-200 m Plastic/Wooden Spool
Material
Cover: HT Polyester Fiber Core: Coated Vectran® Fiber
Construction
Cover: 20-24 Plaited, Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm1.1 kg/100m500 kgf
4 mm1.3 kg/100m750 kgf
5 mm1.85 kg/100m1000 kgf
6 mm2.85 kg/100m1500 kgf
7 mm3.7 kg/100m2000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
