IMEX

Technical rope data

ELASTIC CORD

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–12 mm
Weight0.75–12 kg/100m
Breaking load—
Material
HT Polyester Fiber; Elastic Rubber
Construction
32 Plaited / Parallel Braid
Source catalogues
Leisure Marine
Related markets
Leisure Marine

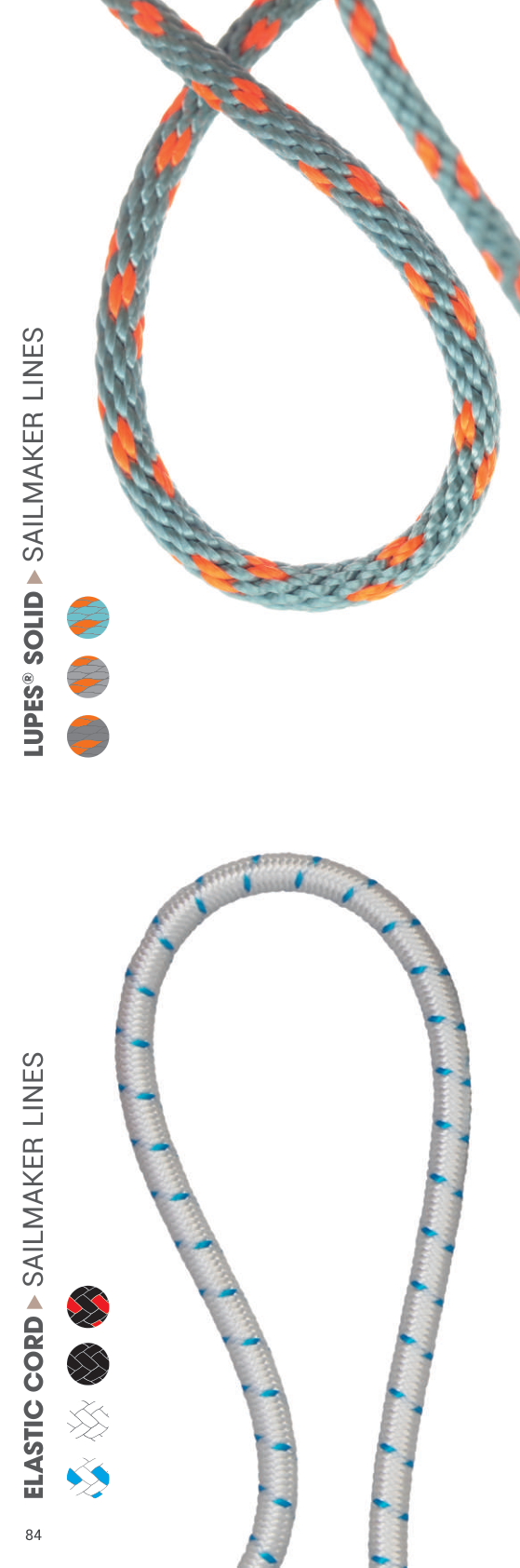

ELASTIC CORD catalogue product image

Applications

Applications

Leech Line

Benefits

Benefits

Premium Quality Rubber CoreDurableHigh ElongationCompact Construction

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 86

Specific Gravity
Approx. 1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic Spool
Material
Cover: HT Polyester Fiber Core: Elastic Rubber
Construction
Cover: 32 Plaited Core: Parallel Braid

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.75 kg/100m—
4 mm1.3 kg/100m—
5 mm2.1 kg/100m—
6 mm3 kg/100m—
8 mm4.3 kg/100m—
10 mm8.2 kg/100m—
12 mm12 kg/100m—

Technical values below are taken from the source catalogue data used by ROPE FINDER.

View BrochureOpen Rope FinderBrowse all products
