Tender Towing System 2026 · PDF 14
- Type
- Bow Shackle
- Standard
- EN 13889
- Availability Note
- Larger Diameters Upon Request
- Material
- AISI 316 / AISI 304
Technical rope data

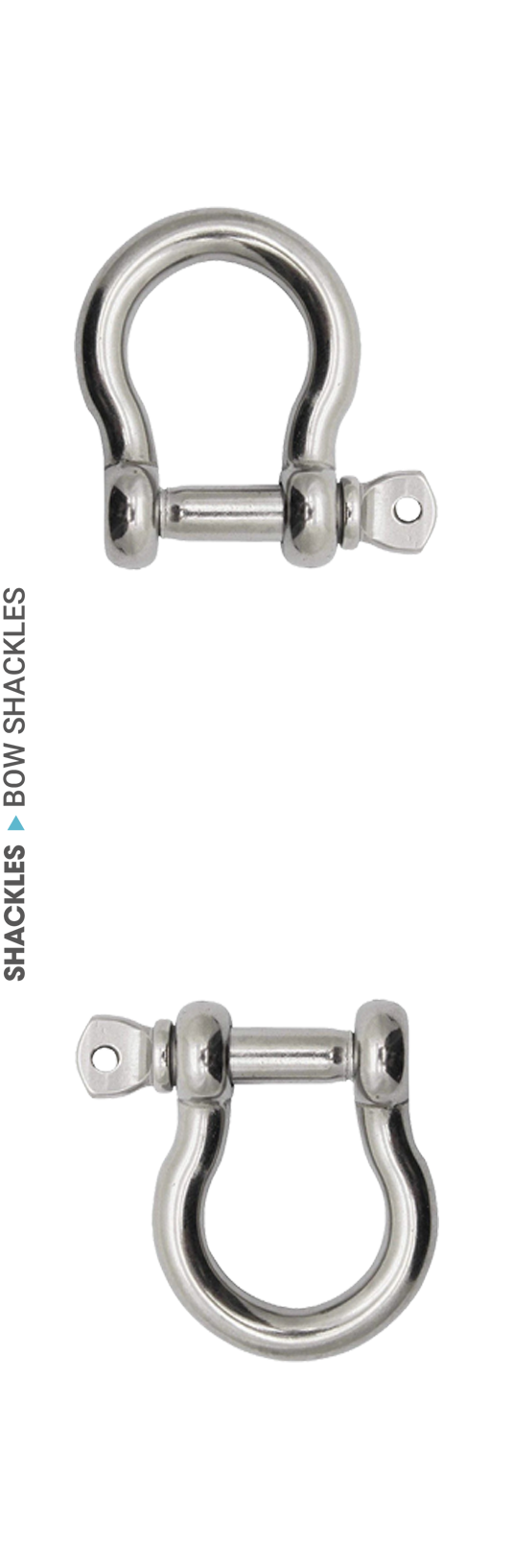

EUROPEAN TYPE SS BOW SHACKLES
Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.
Source catalogue data
Technical rope data
Diameter—
Weight—
Breaking load590–22820 kgf
- Material
- AISI 316 / AISI 304
- Construction
- —
- Source catalogues
- Tender Towing
- Related markets
- Tender Towing
Applications
Applications
LiftingLashingTowing
Benefits
Benefits
Marine-grade stainless steelHigh polished finishEasy attachment and detachmentPin can be wired shut
Source catalogue data
Technical rope data
Technical variants
Catalogue variant data
Compare the catalogue ranges first, then review the exact variants below.
| Diameter | Weight | Breaking load |
|---|---|---|
| — mm | — kg/100m | 1345 kgf |
| — mm | — kg/100m | 13875 kgf |
| — mm | — kg/100m | 18835 kgf |
| — mm | — kg/100m | 22820 kgf |
| — mm | — kg/100m | 2415 kgf |
| — mm | — kg/100m | 3800 kgf |
| — mm | — kg/100m | 5600 kgf |
| — mm | — kg/100m | 590 kgf |
| — mm | — kg/100m | 6580 kgf |
| — mm | — kg/100m | 7630 kgf |
| — mm | — kg/100m | 930 kgf |
| — mm | — kg/100m | 9960 kgf |
Tender Towing System 2026 · PDF 14
| Diameter (mm) | Size (inch) | Size (mm) | A (mm) | L (mm) | R (mm) | WLL (kgf) | Breaking load (kgf) |
|---|---|---|---|---|---|---|---|
| — | 1/4" | 6 | 12 | 24 | 21 | 225 | 1345 |
| — | 3/4" | 19 | 38 | 76 | 66 | 2310 | 13875 |
| — | 7/8" | 22 | 44 | 88 | 77 | 3140 | 18835 |
| — | 1" | 25 | 50 | 100 | 88 | 3800 | 22820 |
| — | 5/16" | 8 | 16 | 32 | 28 | 405 | 2415 |
| — | 3/8" | 10 | 20 | 40 | 35 | 635 | 3800 |
| — | 7/16" | 12 | 24 | 48 | 42 | 935 | 5600 |
| — | 5/32" | 4 | 8 | 16 | 14 | 98 | 590 |
| — | 1/2" | 13 | 26 | 52 | 45 | 1095 | 6580 |
| — | 9/16" | 14 | 28 | 56 | 49 | 1270 | 7630 |
| — | 3/16" | 5 | 10 | 20 | 17 | 155 | 930 |
| — | 5/8" | 16 | 32 | 64 | 56 | 1660 | 9960 |
Technical values below are taken from the source catalogue data used by ROPE FINDER.
