Technical rope data

FORCE DURA MIX AH MCF

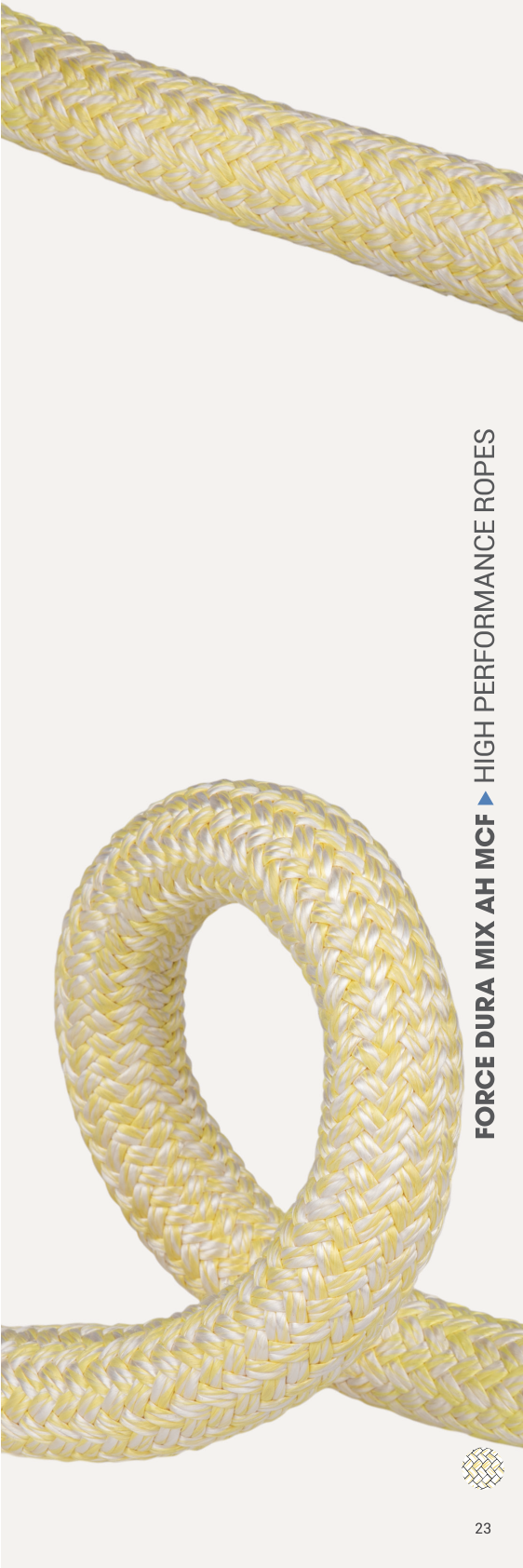

Name: FORCE DURA MIX AH MCF
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter20–28 mm

Weight25–48 kg/100m

Breaking load26500–57775 kgf

Material: %50 Aramid Fiber-%50 UHMWPE Fiber with Marine Chemical Finish (MCF); Uncoated UHMWPE Fiber
Construction: 32 Plaited / 12 Plaited
Source catalogues: Commercial Marine
Related markets: Commercial Marine

Applications

Vessel Primary Mooring LineTug Main Tow LineTug PendantSalvage RopeTrawl/Bridle Line

Benefits

Superior Abrasion ResistanceExcellent Breaking LoadDurableVery Low StretchLightweightDoes not Kink

Source catalogue data

Specific Gravity: 1,00-1,20 kg/dm³
UV Resistance: Very Good
Chemical Resistance: Excellent
Melting Point: 147°C
Critical Temperature: 65°C
Working Stretch: <1,5%
Fiber Water Absorption: Approx. %0-1
Wet Abrasion: Excellent
Dry Abrasion: Excellent
Standard: EN ISO 10325
Length: Upon Request
Availability Note: Other Colours & Larger Diameters Upon Request
Material: Cover: %50 Aramid Fiber-%50 UHMWPE Fiber with Marine Chemical Finish (MCF) Core: Uncoated UHMWPE Fiber
Construction: Cover: 32 Plaited Core: 12 Plaited

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load – Unspliced	Breaking load – Spliced
20 mm	25 kg/100m	29445 kgf	26500 kgf
22 mm	32 kg/100m	38000 kgf	34200 kgf
24 mm	36 kg/100m	44220 kgf	39800 kgf
28 mm	48 kg/100m	57775 kgf	52000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
