Technical rope data

FORCE K® MAX GR/P

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter28–96 mm
Weight—
Breaking load100344–886752 kgf
Material
Coated UHMWPE Fiber
Construction
12 Strand Braided
Source catalogues
Commercial Marine
Related markets
Commercial Marine

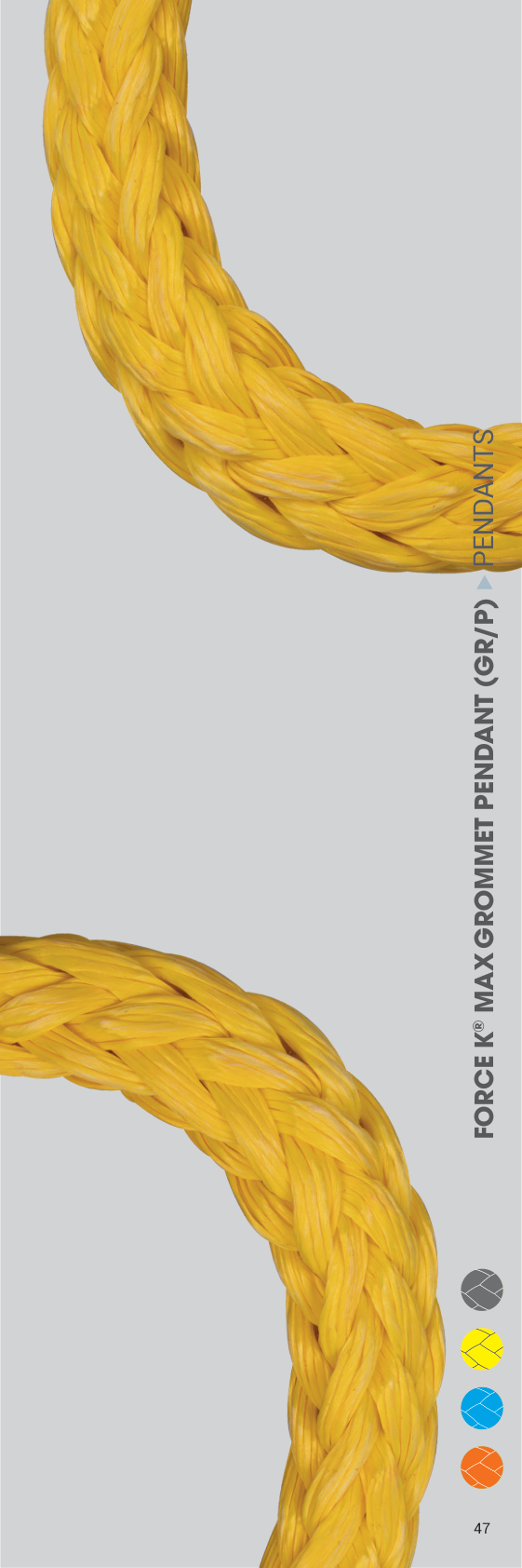

FORCE K® MAX GR/P catalogue product image

Applications

Applications

Tug PendantEye Protection

Benefits

Benefits

Superior Abrasion ResistanceExcellent Breaking LoadBuoyantDurableVery Low StretchLightweightEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 49

Specific Gravity
0,97 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Excellent
Melting Point
147°C
Critical Temperature
65°C
Working Stretch
<1,5%
Fiber Water Absorption
None
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Standard
EN ISO 10325
Length
Upon Request
Availability Note
Other Colours & Larger Diameters Upon Request
Material
Coated UHMWPE Fiber
Construction
12 Strand Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
28 mm——100344 kgf
32 mm——127264 kgf
36 mm——157448 kgf
40 mm——188448 kgf
44 mm——224344 kgf
48 mm——261048 kgf
52 mm——300208 kgf
56 mm——341816 kgf
60 mm——386680 kgf
64 mm——433176 kgf
72 mm——533520 kgf
76 mm——587520 kgf
80 mm——642848 kgf
88 mm——760304 kgf
96 mm——886752 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
