Technical rope data

FORCE K® SBF EXTENSION

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–16 mm
Weight2.3–15.1 kg/100m
Breaking load3192–25194 kgf
Material
Coated UHMWPE Fiber
Construction
12 Strand Braided
Source catalogues
Off-Road
Related markets
Off-Road

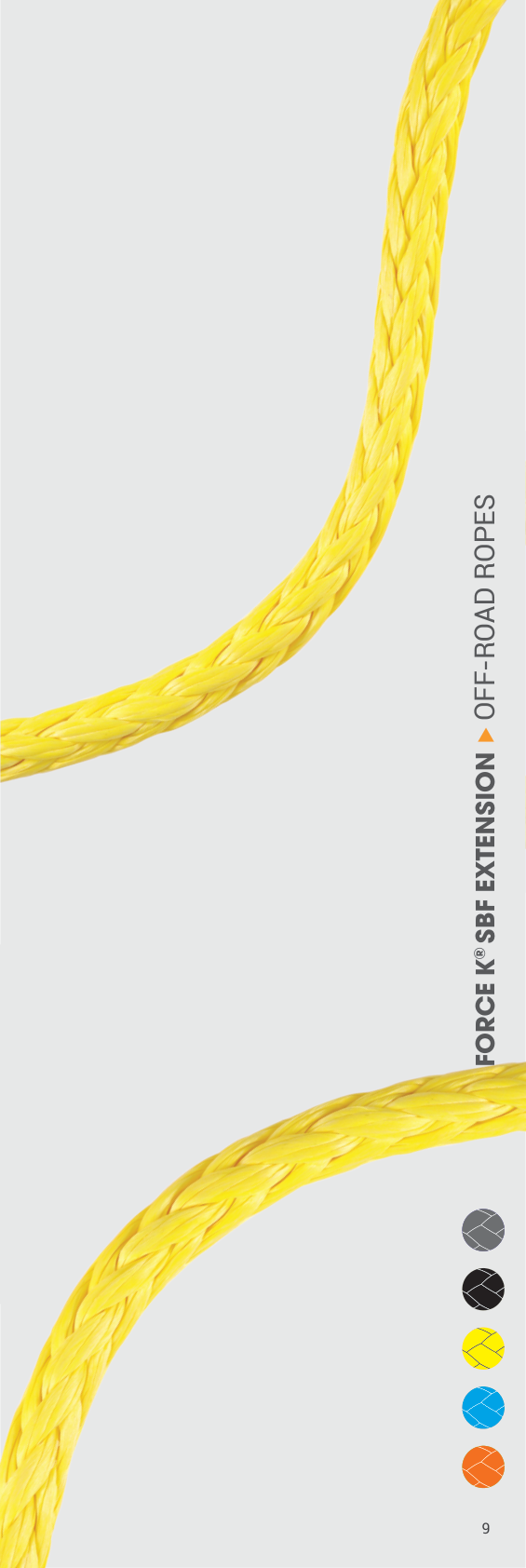

FORCE K® SBF EXTENSION catalogue product image

Applications

Applications

Winch Line

Benefits

Benefits

Superior Bending Fatigue (SBF)BuoyantDurableVery Low StretchLightweightEasy to SpliceDoes not Kink

Source catalogue data

Technical rope data

Off-Road Ropes 2022 · PDF 11

Specific Gravity
0,97 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Excellent
Melting Point
147°C
Critical Temperature
65°C
Working Stretch
<1,5%
Fiber Water Absorption
None
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Length
7,5m, 12m, 15m or 30m
Availability Note
Other Colours & Larger Diameters Upon Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
6 mm2.3 kg/100m3563 kgf3192 kgf
8 mm4 kg/100m6270 kgf5681 kgf
10 mm6.1 kg/100m9880 kgf8911 kgf
12 mm8.7 kg/100m14250 kgf12787 kgf
14 mm11.7 kg/100m19380 kgf17442 kgf
16 mm15.1 kg/100m25194 kgf22515 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
