Technical rope data

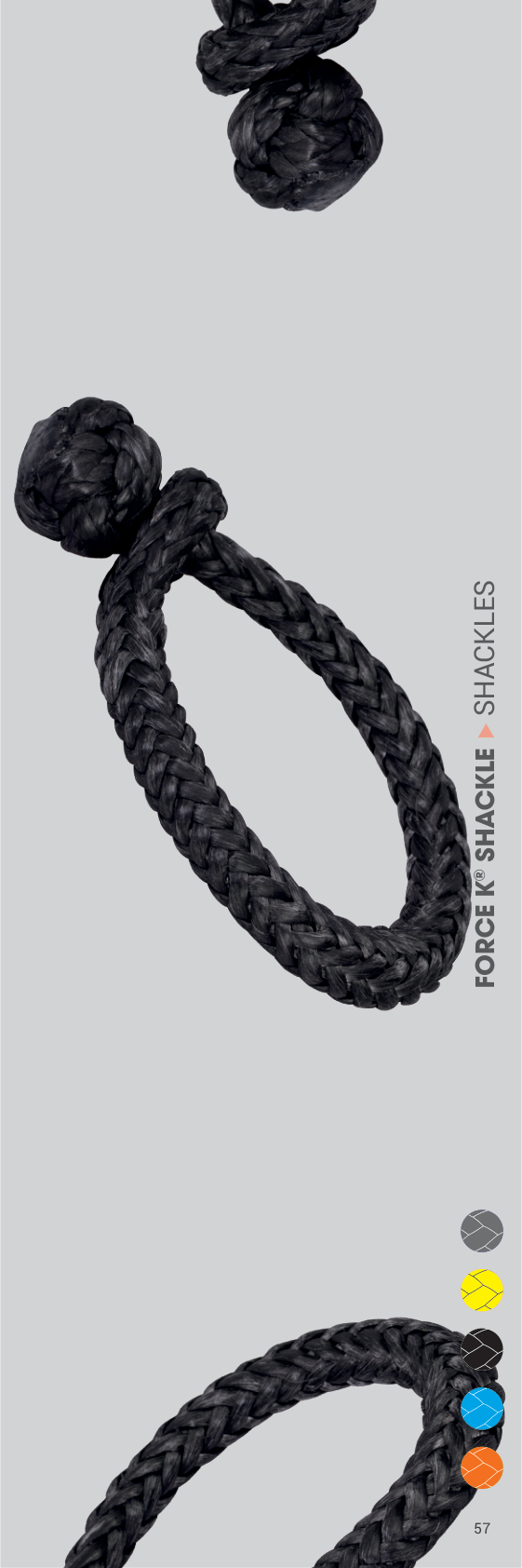

FORCE K® SHACKLE

Name: FORCE K® SHACKLE
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter—

Weight—

Breaking load—

Applications

Connection Line

Benefits

Can be Opened and Closed QuicklyBuoyantVery Low StretchSelf-Locking Under LoadEasy to UseExtremely Durable

Source catalogue data

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Shackle diameter (mm)	Rope diameter (mm)	Length in closed condition (cm)	Shackle-1 weight (kg)	Shackle-1 minimum breaking load (kgf)	Shackle-2 weight (kg)	Shackle-2 minimum breaking load (kgf)	Shackle-3 weight (kg)	Shackle-3 minimum breaking load (kgf)
12	7	12,5	0,03	5.000	0,05	11.250	0,07	16.900
14	8	15,0	0,05	6.330	0,07	14.250	0,11	21.400
18	10	17,5	0,09	9.700	0,13	21.830	0,20	32.790
20	12	20,0	0,14	13.770	0,21	30.990	0,32	46.550
24	14	35,0	0,33	18.360	0,49	41.310	0,75	62.060
28	16	40,0	0,49	23.455	0,73	52.780	1,12	79.280
32	18	45,0	0,68	29.065	1,03	65.400	1,57	98.240
34	20	50,0	0,93	34.675	1,40	78.020	2,14	117.210
36	22	55,0	1,23	41.300	1,85	92.930	2,83	139.600
40	24	60,0	1,59	47.930	2,38	107.850	3,65	162.010
44	26	65,0	2,01	55.065	3,01	123.900	4,62	186.120
48	28	70,0	2,49	62.715	3,74	141.110	5,73	211.980
50	30	75,0	3,05	71.385	4,57	160.620	7,01	241.290
54	32	80,0	3,68	79.540	5,52	178.970	8,46	268.850
58	34	85,0	4,39	88.720	6,59	199.620	10,10	299.880
60	36	90,0	5,20	98.405	7,80	221.420	11,96	332.610
64	38	95,0	6,09	108.090	9,13	243.210	14,00	365.350
68	40	100,0	7,07	117.780	10,61	265.010	16,27	398.100
72	42	110,0	8,54	128.980	12,80	290.210	19,63	435.960

Spliced Break Load (All tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
