Technical rope data

FORCE K® SHACKLES

Name: FORCE K® SHACKLES
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quote View Brochure

Source catalogue data

Technical rope data

Diameter—

Weight—

Breaking load5000–435960 kgf

Material: Coated UHMWPE Fiber
Construction: 12 Strand Plaited
Source catalogues: Tender Towing
Related markets: Tender Towing

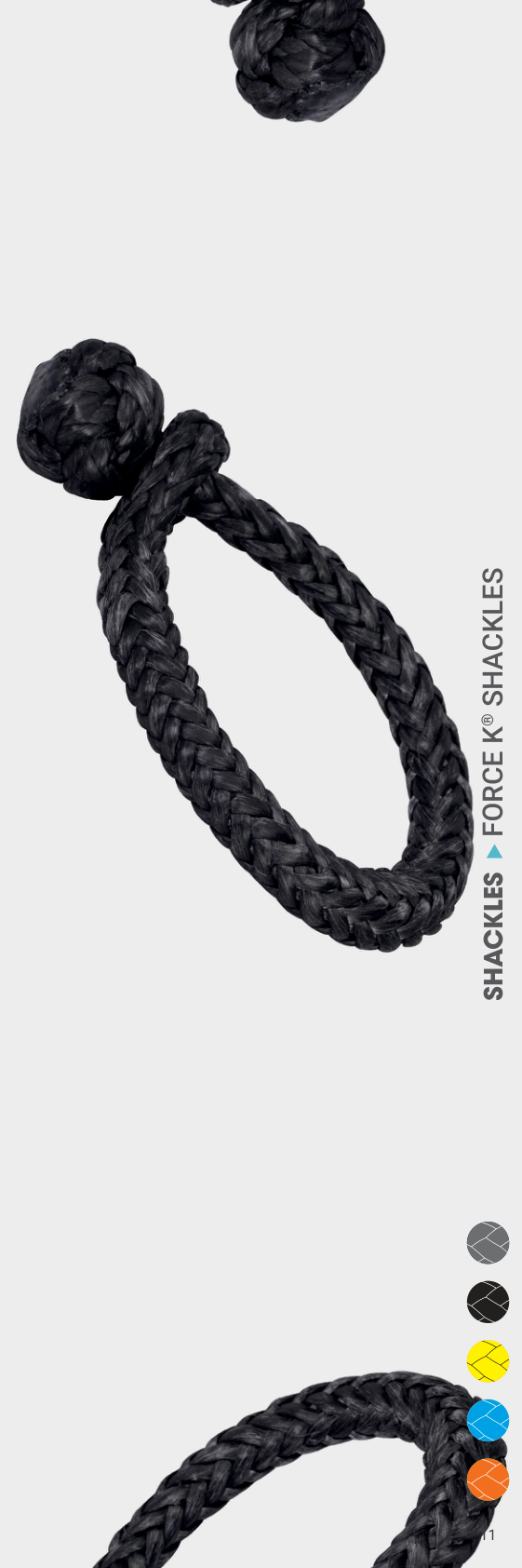

FORCE K® SHACKLES catalogue product image

Applications

Connection Line

Benefits

Can be Opened and Closed QuicklyBuoyantVery Low StretchSelf-Locking Under LoadEasy to UseExtremely Durable

Source catalogue data

Technical rope data

Tender Towing System 2026 · PDF 13

Specific Gravity: 0,97 kg/dm3
UV Resistance: Excellent
Chemical Resistance: Excellent
Melting Point: 147°C
Critical Temperature: 65°C
Working Stretch: <1,5%
Wet Abrasion: Excellent
Dry Abrasion: Excellent
Availability Note: Other Colours & Larger Diameters Upon Request
Material: Coated UHMWPE Fiber
Construction: 12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 108090 kgf / Shackles 2 — Minimum breaking load (kgf): 243210 kgf / Shackles 3 — Minimum breaking load (kgf): 365350 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 117780 kgf / Shackles 2 — Minimum breaking load (kgf): 265010 kgf / Shackles 3 — Minimum breaking load (kgf): 398100 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 128980 kgf / Shackles 2 — Minimum breaking load (kgf): 290210 kgf / Shackles 3 — Minimum breaking load (kgf): 435960 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 13770 kgf / Shackles 2 — Minimum breaking load (kgf): 30990 kgf / Shackles 3 — Minimum breaking load (kgf): 46550 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 18360 kgf / Shackles 2 — Minimum breaking load (kgf): 41310 kgf / Shackles 3 — Minimum breaking load (kgf): 62060 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 23455 kgf / Shackles 2 — Minimum breaking load (kgf): 52780 kgf / Shackles 3 — Minimum breaking load (kgf): 79280 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 29065 kgf / Shackles 2 — Minimum breaking load (kgf): 65400 kgf / Shackles 3 — Minimum breaking load (kgf): 98240 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 34675 kgf / Shackles 2 — Minimum breaking load (kgf): 78020 kgf / Shackles 3 — Minimum breaking load (kgf): 117210 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 41300 kgf / Shackles 2 — Minimum breaking load (kgf): 92930 kgf / Shackles 3 — Minimum breaking load (kgf): 139600 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 47930 kgf / Shackles 2 — Minimum breaking load (kgf): 107850 kgf / Shackles 3 — Minimum breaking load (kgf): 162010 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 5000 kgf / Shackles 2 — Minimum breaking load (kgf): 11250 kgf / Shackles 3 — Minimum breaking load (kgf): 16900 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 55065 kgf / Shackles 2 — Minimum breaking load (kgf): 123900 kgf / Shackles 3 — Minimum breaking load (kgf): 186120 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 62715 kgf / Shackles 2 — Minimum breaking load (kgf): 141110 kgf / Shackles 3 — Minimum breaking load (kgf): 211980 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 6330 kgf / Shackles 2 — Minimum breaking load (kgf): 14250 kgf / Shackles 3 — Minimum breaking load (kgf): 21400 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 71385 kgf / Shackles 2 — Minimum breaking load (kgf): 160620 kgf / Shackles 3 — Minimum breaking load (kgf): 241290 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 79540 kgf / Shackles 2 — Minimum breaking load (kgf): 178970 kgf / Shackles 3 — Minimum breaking load (kgf): 268850 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 88720 kgf / Shackles 2 — Minimum breaking load (kgf): 199620 kgf / Shackles 3 — Minimum breaking load (kgf): 299880 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 9700 kgf / Shackles 2 — Minimum breaking load (kgf): 21830 kgf / Shackles 3 — Minimum breaking load (kgf): 32790 kgf
— mm	— kg/100m	Shackles 1 — Minimum breaking load (kgf): 98405 kgf / Shackles 2 — Minimum breaking load (kgf): 221420 kgf / Shackles 3 — Minimum breaking load (kgf): 332610 kgf

Tender Towing System 2026 · PDF 13

Diameter (mm)	Shackle diameter (mm)	Rope diameter (mm)	Length in closed condition (cm)	Shackle-1 Weight (kg)	Shackle-1 Minimum breaking load (kgf)	Shackle-2 Weight (kg)	Shackle-2 Minimum breaking load (kgf)	Shackle-3 Weight (kg)	Shackle-3 Minimum breaking load (kgf)
—	64	38	95	6.09	108090	9.13	243210	14	365350
—	68	40	100	7.07	117780	10.61	265010	16.27	398100
—	72	42	110	8.54	128980	12.8	290210	19.63	435960
—	20	12	20	0.14	13770	0.21	30990	0.32	46550
—	24	14	35	0.33	18360	0.49	41310	0.75	62060
—	28	16	40	0.49	23455	0.73	52780	1.12	79280
—	32	18	45	0.68	29065	1.03	65400	1.57	98240
—	34	20	50	0.93	34675	1.4	78020	2.14	117210
—	36	22	55	1.23	41300	1.85	92930	2.83	139600
—	40	24	60	1.59	47930	2.38	107850	3.65	162010
—	12	7	12.5	0.03	5000	0.05	11250	0.07	16900
—	44	26	65	2.01	55065	3.01	123900	4.62	186120
—	48	28	70	2.49	62715	3.74	141110	5.73	211980
—	14	8	15	0.05	6330	0.07	14250	0.11	21400
—	50	30	75	3.05	71385	4.57	160620	7.01	241290
—	54	32	80	3.68	79540	5.52	178970	8.46	268850
—	58	34	85	4.39	88720	6.59	199620	10.1	299880
—	18	10	17.5	0.09	9700	0.13	21830	0.2	32790
—	60	36	90	5.2	98405	7.8	221420	11.96	332610

Spliced Break Load (All tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
