IMEX

Technical rope data

GP ROCK V®

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–20 mm
Weight6.05–34.2 kg/100m
Breaking load2800–18600 kgf
Material
HT Polyester Fiber; Coated Vectran® Fiber
Construction
24-32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

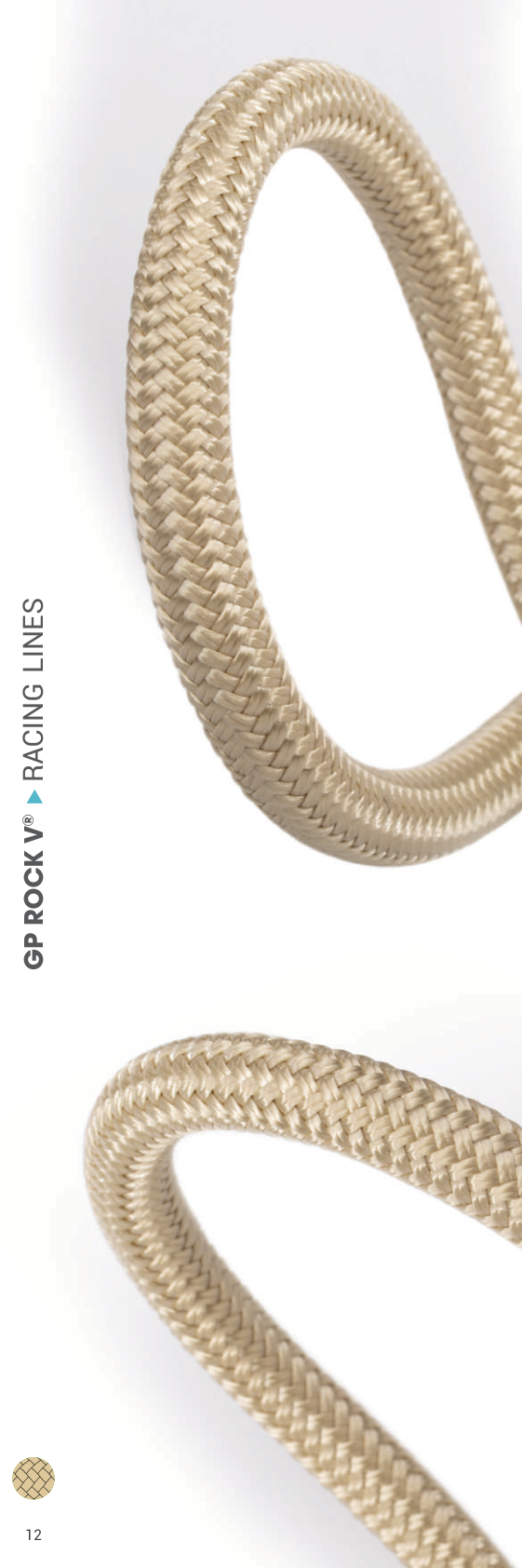

GP ROCK V® catalogue product image

Applications

Applications

Main HalyardGenoa HalyardMain SheetSpi GuysCunninghamMain Outhaul

Benefits

Benefits

Good Performance in JammersHigh Breaking LoadExtremely Low StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 14

Specific Gravity
Approx. 1,38 kg/dm3
UV Resistance
Poor
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<1%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: Coated Vectran® Fiber
Construction
Cover: 24-32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm6.05 kg/100m2800 kgf
10 mm8.65 kg/100m4200 kgf
12 mm11.4 kg/100m6100 kgf
14 mm15.95 kg/100m9300 kgf
16 mm22.8 kg/100m12100 kgf
18 mm27.35 kg/100m15400 kgf
20 mm34.2 kg/100m18600 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
