IMEX

Technical rope data

HORIZON STATIC®

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter9.5–13 mm
Weight6.6–12 kg/100m
Breaking load1900–3700 kgf
Material
HT Polyester Fiber; HT Polyamide Fiber
Construction
32 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

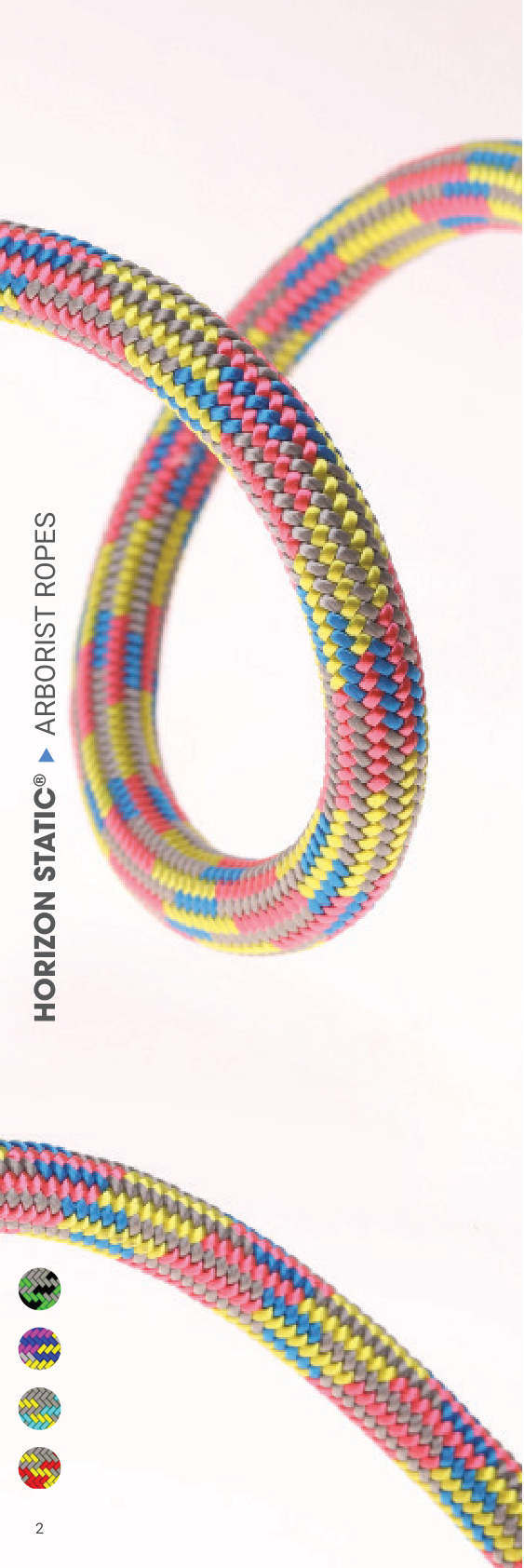

HORIZON STATIC® catalogue product image

Applications

Applications

Rescue LineSRT Climbing Line (Single Rope Technique)Static Rappelling LineSafety LifelineClimbing Line

Benefits

Benefits

Works with HardwareWorks Smooth DescentsWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 4

Type
A
Specific Gravity
1,24 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
214-256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Good
Dry Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
9.5 mm6.6 kg/100m1900 kgf
11.2 mm9.05 kg/100m3089 kgf
13 mm12 kg/100m3700 kgf

Arborist Ropes 2025 · PDF 4

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
9.51.749
11.21.749
131.749

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
