Commercial Marine Ropes 2024 · PDF 65
- Standard
- EN 1492-2+A1
- Safety Factor
- 7:1
- Material
- 100% HT Polyester Webbing
Technical rope data

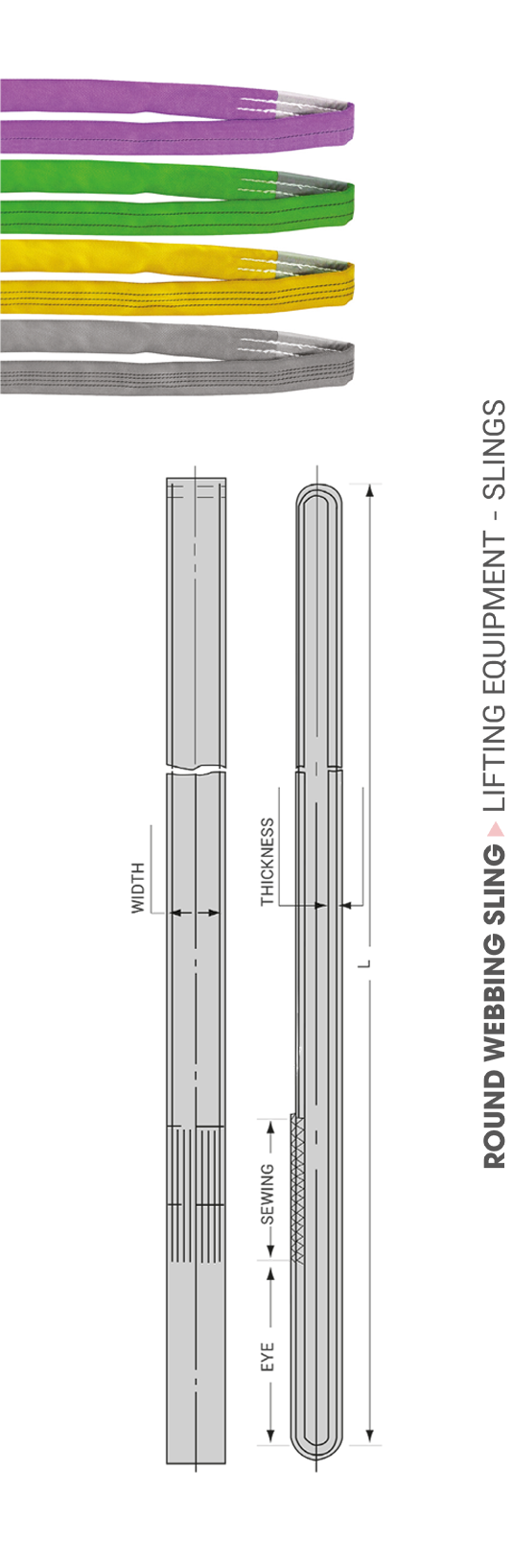

LE-2 ROUND WEBBING SLING
Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.
Source catalogue data
Technical rope data
Diameter—
Weight—
Breaking load—
- Material
- 100% HT Polyester Webbing
- Construction
- —
- Source catalogues
- Commercial Marine
- Related markets
- Commercial Marine
Applications
Applications
—
Benefits
Benefits
High quality product with the 7:1 safety factorProduced from the high strength polyester webbingVarious sizes available for every applicationNot slipperyHigh resistance to chemical and oil contaminationCustom made slings for specific applications may be made to customer specificationsVarious colour are available
Source catalogue data
Technical rope data
Technical variants
Catalogue variant data
Compare the catalogue ranges first, then review the exact variants below.
Commercial Marine Ropes 2024 · PDF 65
| Colour | Width (mm) | Working load, 100% (kgf) | Working load, 80% (kgf) | Working load, 200% (kgf) | Working load, angle 0–45° (kgf) | Working load, angle 45–60° (kgf) | Breaking load (kgf) | Working load (kgf) | Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| VIOLET | 25 | 1000 | 800 | 2000 | 1400 | 1000 | 7000 | 1000 | 1-10 |
| GREEN | 50 | 2000 | 1600 | 4000 | 2800 | 2000 | 14000 | 2000 | 2-10 |
| YELLOW | 75 | 3000 | 2400 | 6000 | 4200 | 3000 | 21000 | 3000 | 2-10 |
| GRAY | 100 | 4000 | 3200 | 8000 | 5600 | 4000 | 28000 | 4000 | 4-10 |
| RED | 125 | 5000 | 4000 | 10000 | 7000 | 5000 | 35000 | 5000 | 4-10 |
| BROWN | 150 | 6000 | 4800 | 12000 | 8400 | 6000 | 42000 | 6000 | 4-10 |
| BLUE | 200 | 8000 | 6400 | 16000 | 11200 | 8000 | 56000 | 8000 | 5-10 |
| ORANGE | 250 | 10000 | 8000 | 20000 | 14000 | 10000 | 70000 | 10000 | 5-10 |
| Angle | Capacity (%) |
|---|---|
| 0° | 100 |
| 30° | 95 |
| 45° | 90 |
| 60° | 85 |
| 90° | 70 |
| 120° | 50 |
Technical values below are taken from the source catalogue data used by ROPE FINDER.
