IMEX

Technical rope data

LUPA® CORD

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–6 mm
Weight0.7–2.25 kg/100m
Breaking load200–720 kgf
Material
HT Polyamide Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Leisure Marine
Related markets
Leisure Marine

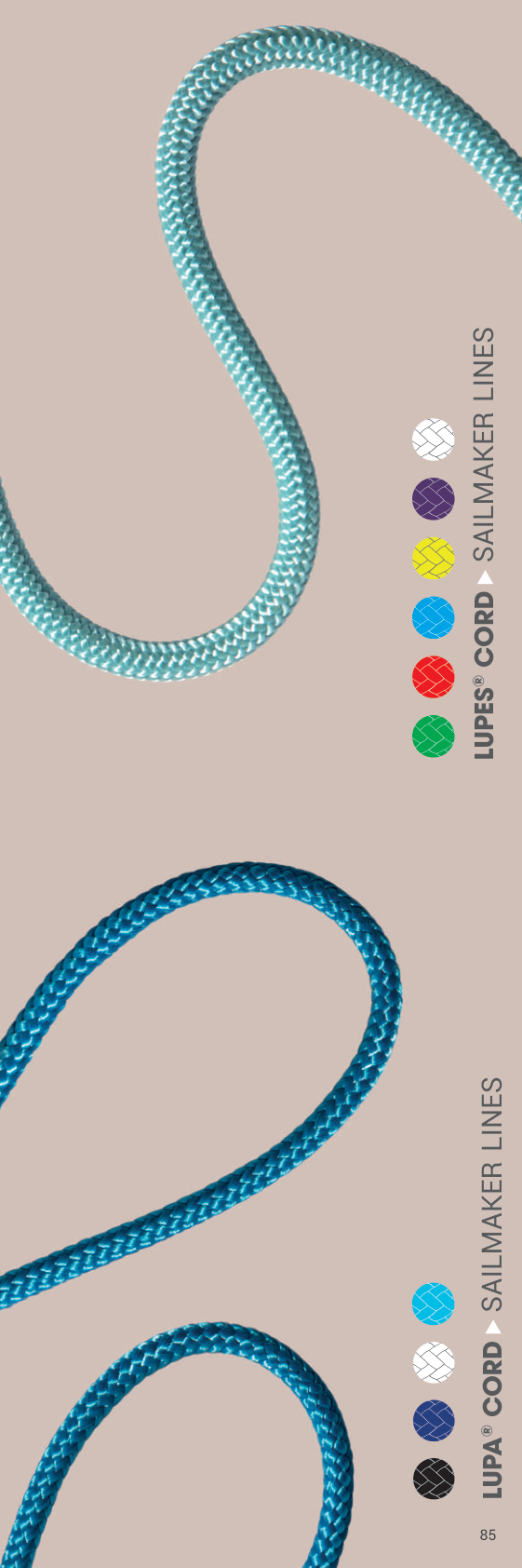

LUPA® CORD catalogue product image

Applications

Applications

Luff Line/Leech Line

Benefits

Benefits

Outstanding FlexibilityCost-EfficientExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 87

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Working Stretch
<12%
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Length
100-200 m Plastic Spool
Material
Cover: HT Polyamide Fiber Core: HT Polyamide Fiber
Construction
Cover: 16 Plaited Core: Parallel Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.7 kg/100m200 kgf
4 mm1 kg/100m330 kgf
5 mm1.6 kg/100m500 kgf
6 mm2.25 kg/100m720 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
