Technical rope data

LUPA® EUROPA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter24–40 mm
Weight34.05–93.65 kg/100m
Breaking load12000–30000 kgf
Material
100% HT Polyamide Fiber
Construction
24 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

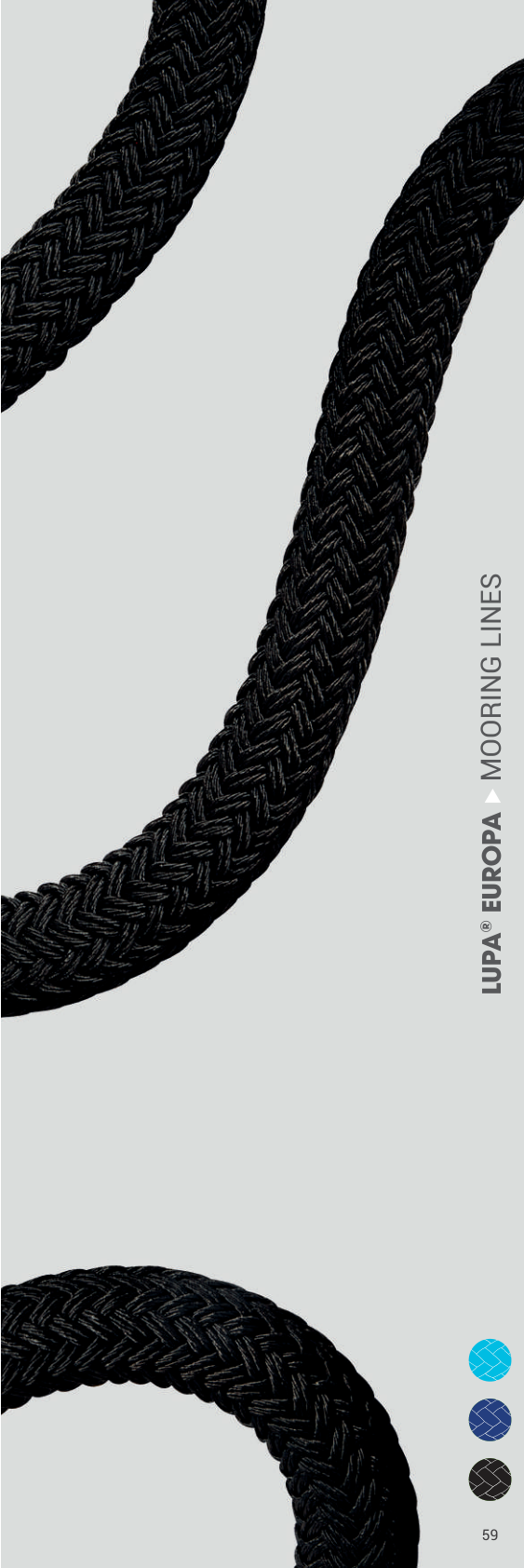

LUPA® EUROPA catalogue product image

Applications

Applications

Dock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSuperior Soft HandDurableFlexible CoverHigh Breaking LoadExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 61

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Elongation at Break
Approx. %30
Length
100-200 m Wooden Spool or Coil
Material
100% HT Polyamide Fiber
Construction
Cover: 24 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
24 mm34.05 kg/100m12000 kgf
28 mm45.25 kg/100m16000 kgf
32 mm60.05 kg/100m21000 kgf
36 mm78.85 kg/100m25500 kgf
40 mm93.65 kg/100m30000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
