IMEX

Technical rope data

LUPA® ROUND

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter18–96 mm
Weight23–578 kg/100m
Breaking load8000–183000 kgf
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited
Source catalogues
Leisure Marine

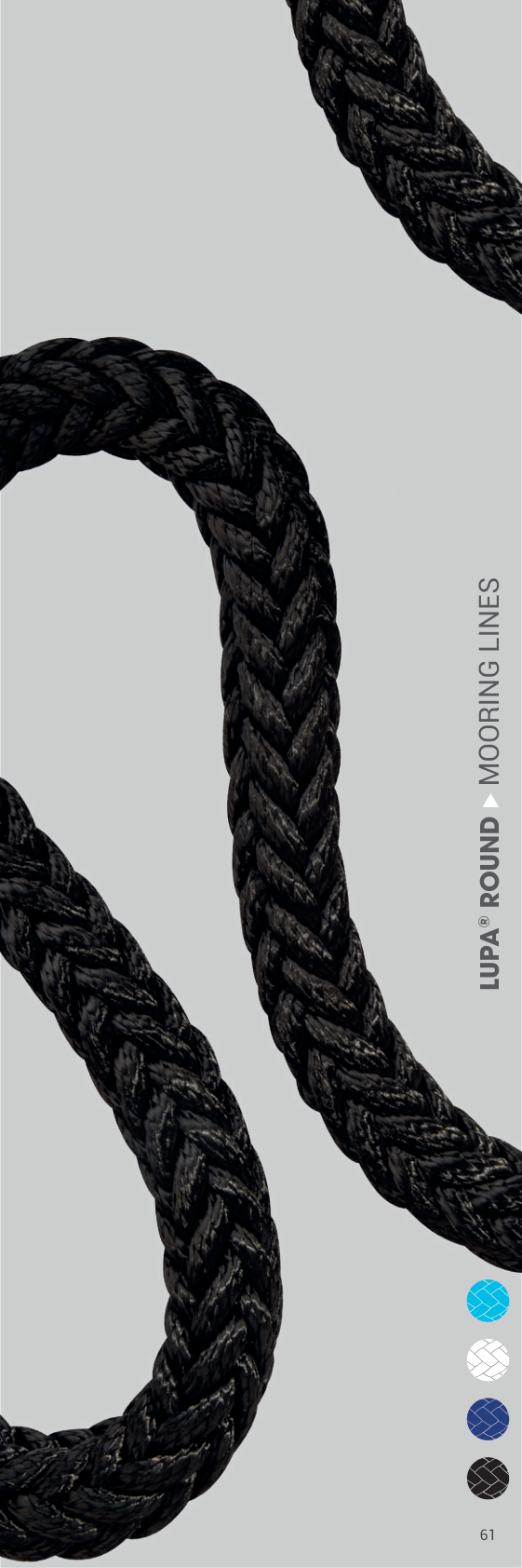

LUPA® ROUND catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineVessel PendantTug Shock Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadEasy to SpliceExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 63

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Elongation at Break
Approx. %30-35
Standard
EN ISO 1140
Length
100-200 m Wooden Spool or Coil
Type
T
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
18 mm23 kg/100m8000 kgf
20 mm25 kg/100m8670 kgf
22 mm30.5 kg/100m10300 kgf
24 mm36 kg/100m12030 kgf
26 mm42.5 kg/100m14500 kgf
28 mm49 kg/100m17000 kgf
30 mm56 kg/100m19000 kgf
32 mm64 kg/100m21125 kgf
34 mm72.5 kg/100m24310 kgf
36 mm81 kg/100m27500 kgf
38 mm90.5 kg/100m30750 kgf
40 mm100 kg/100m34000 kgf
42 mm110.5 kg/100m37500 kgf
44 mm121 kg/100m41000 kgf
46 mm132.5 kg/100m44500 kgf
48 mm144.2 kg/100m48000 kgf
52 mm170 kg/100m58000 kgf
56 mm197 kg/100m68000 kgf
60 mm226 kg/100m76250 kgf
64 mm257 kg/100m84500 kgf
72 mm325 kg/100m110000 kgf
80 mm401 kg/100m129000 kgf
88 mm486 kg/100m152000 kgf
96 mm578 kg/100m183000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
