Technical rope data

LUPA® ROUND GR/P

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter32–96 mm
Weight—
Breaking load30400–263520 kgf
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

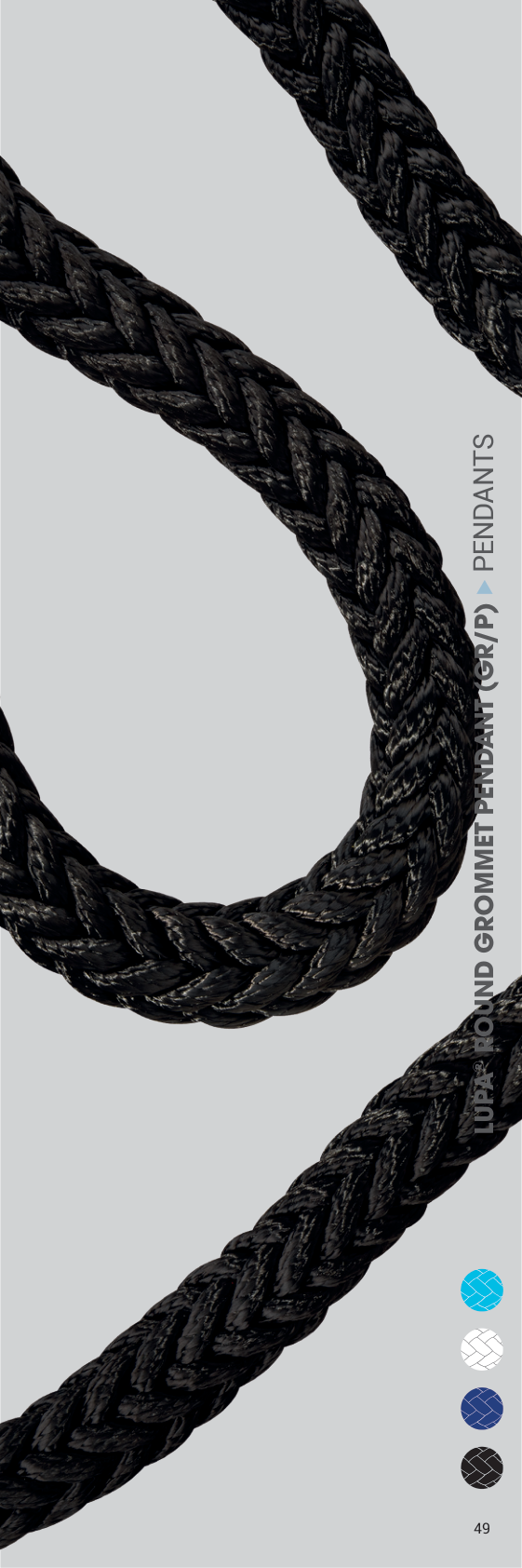

LUPA® ROUND GR/P catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadExcellent Shock AbsorptionEasy to SpliceEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 51

Type
T
Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30-35
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Standard
EN ISO 1140
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
32 mm——30400 kgf
36 mm——39600 kgf
40 mm——48960 kgf
44 mm——59040 kgf
48 mm——69120 kgf
52 mm——83520 kgf
56 mm——97920 kgf
60 mm——109800 kgf
64 mm——121680 kgf
72 mm——158400 kgf
80 mm——185760 kgf
88 mm——218880 kgf
96 mm——263520 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
