Technical rope data

LUPA® ROUND K.E.R.R

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter18–36 mm
Weight23–81 kg/100m
Breaking load8000–27500 kgf
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited
Source catalogues
Off-Road
Related markets
Off-Road

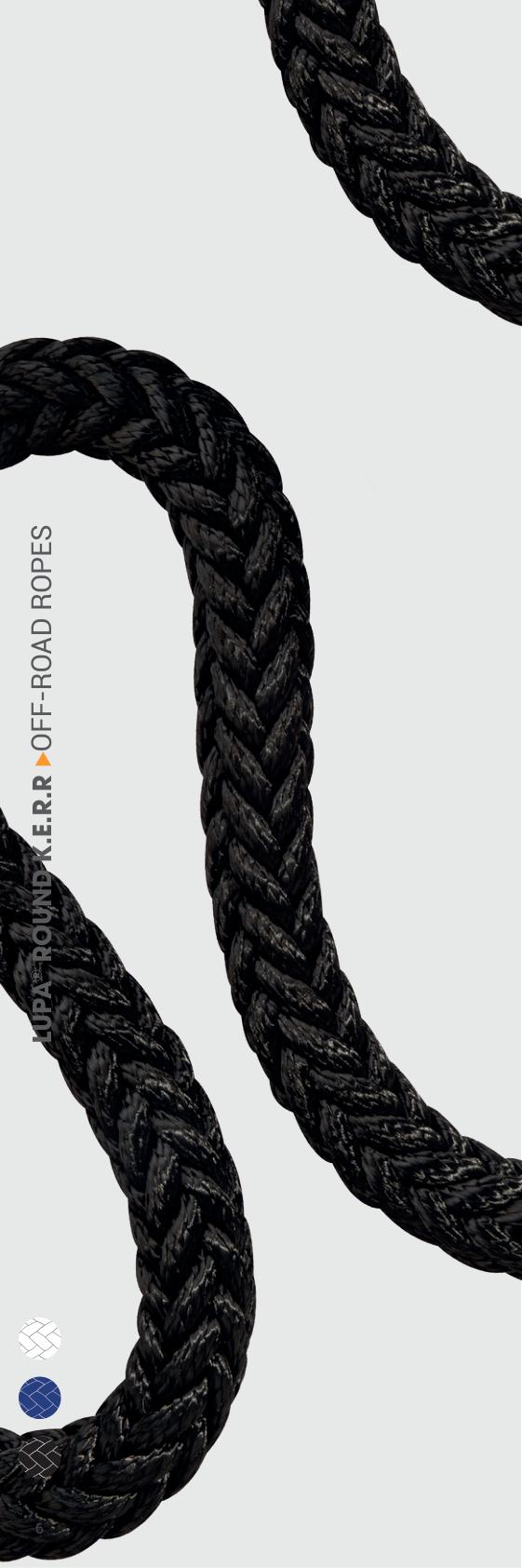

LUPA® ROUND K.E.R.R catalogue product image

Applications

Applications

Kinetic Energy Recovery Rope (KERR)

Benefits

Benefits

Does not KinkSoft HandDurableHigh Breaking LoadExcellent Shock Absorption

Source catalogue data

Technical rope data

Off-Road Ropes 2022 · PDF 8

Type
T
Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30-35
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Standard
EN ISO 1140
Length
5m, 6m, 9m, 12m, 14m, 16m or 20m
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
18 mm23 kg/100m8000 kgf
24 mm36 kg/100m12030 kgf
28 mm49 kg/100m17000 kgf
30 mm56 kg/100m19000 kgf
32 mm64 kg/100m21125 kgf
36 mm81 kg/100m27500 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
