IMEX

Technical rope data

LUPA® ROUND SL/S

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter40–96 mm
Weight100–578 kg/100m
Breaking load30600–183000 kgf
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

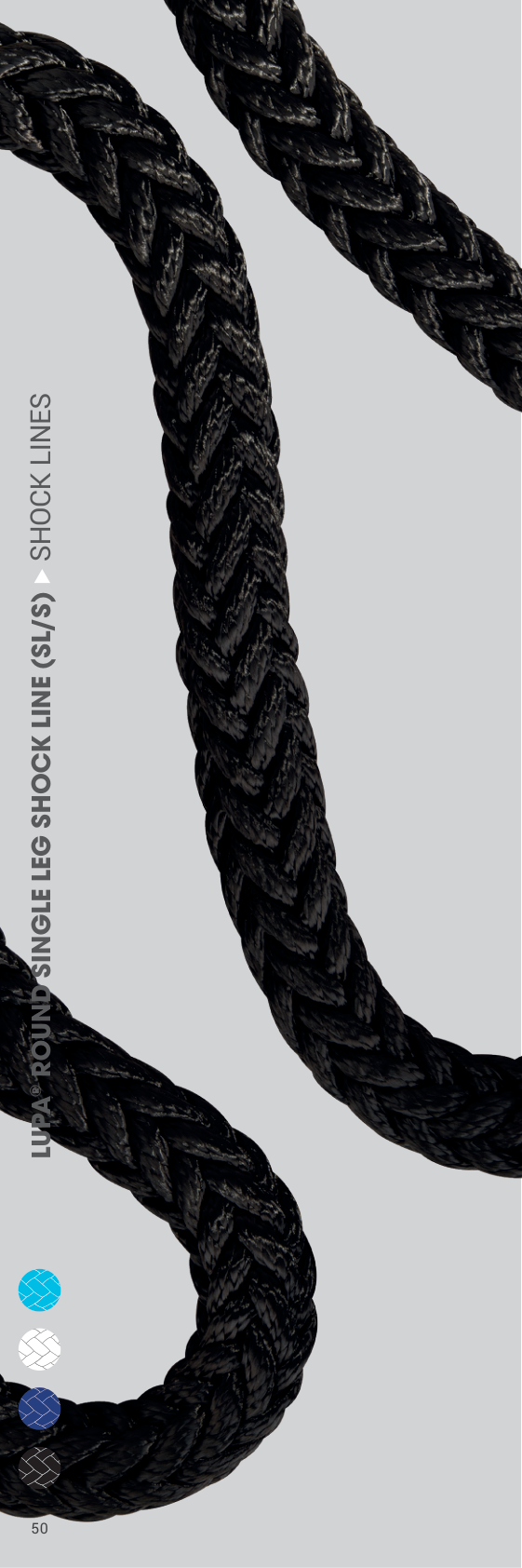

LUPA® ROUND SL/S catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadExcellent Shock AbsorptionEasy to SpliceEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 52

Type
T
Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30-35
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Standard
EN ISO 1140
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyamide Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
40 mm100 kg/100m34000 kgf30600 kgf
42 mm110.5 kg/100m37500 kgf33750 kgf
44 mm121 kg/100m41000 kgf36900 kgf
46 mm132.5 kg/100m44500 kgf40050 kgf
48 mm144.2 kg/100m48000 kgf43200 kgf
52 mm170 kg/100m58000 kgf52200 kgf
56 mm197 kg/100m68000 kgf61200 kgf
60 mm226 kg/100m76250 kgf68625 kgf
64 mm257 kg/100m84500 kgf76050 kgf
72 mm325 kg/100m110000 kgf99000 kgf
80 mm401 kg/100m129000 kgf116100 kgf
88 mm486 kg/100m152000 kgf136800 kgf
96 mm578 kg/100m183000 kgf164700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
