Technical rope data

LUPA® SQUARE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12–56 mm
Weight9–197 kg/100m
Breaking load3060–63600 kgf
Material
100% HT Polyamide Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Leisure Marine

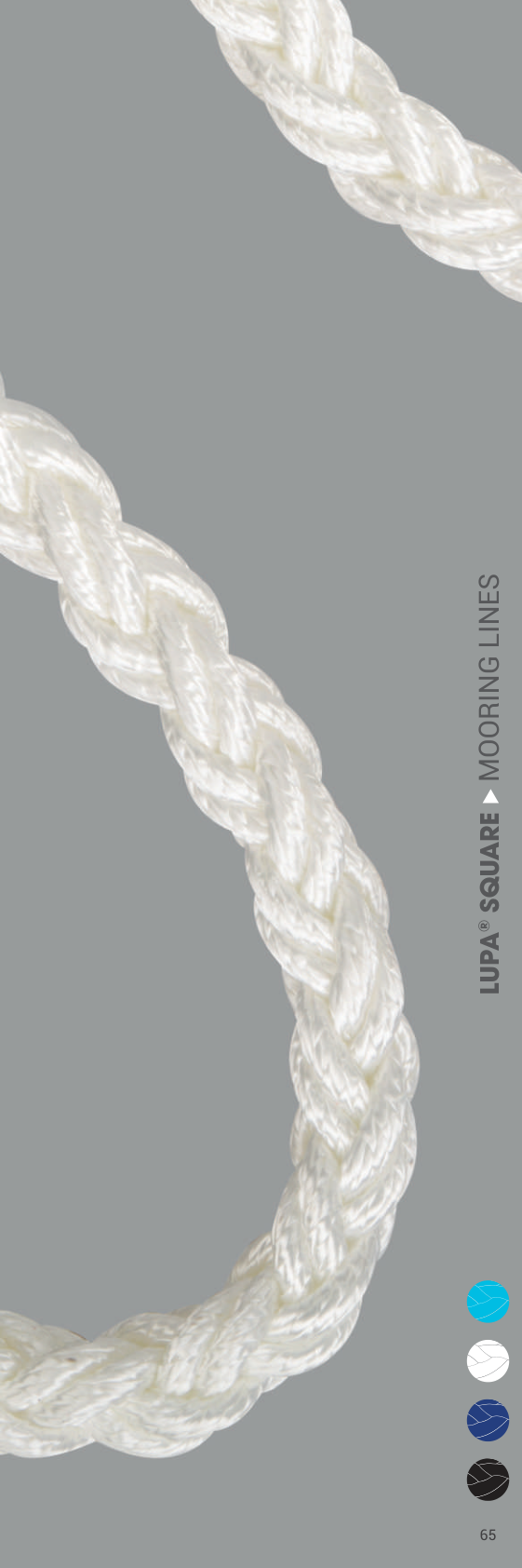

LUPA® SQUARE catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineVessel PendantTug Shock Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadEasy to SpliceExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 67

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Elongation at Break
Approx. %30-35
Standard
EN ISO 1140
Length
100-200 m Plastic/Wooden Spool or Coil
Type
L
Material
100% HT Polyamide Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12 mm9 kg/100m3060 kgf
14 mm12.3 kg/100m4250 kgf
16 mm16 kg/100m5400 kgf
18 mm20.5 kg/100m6875 kgf
20 mm25 kg/100m8500 kgf
22 mm30.5 kg/100m10250 kgf
24 mm36 kg/100m12000 kgf
26 mm42.5 kg/100m14500 kgf
28 mm49 kg/100m17000 kgf
30 mm56 kg/100m19000 kgf
32 mm64 kg/100m21125 kgf
34 mm72.5 kg/100m24310 kgf
36 mm81 kg/100m27500 kgf
38 mm90.5 kg/100m30750 kgf
40 mm100 kg/100m34000 kgf
44 mm121 kg/100m40800 kgf
48 mm144 kg/100m47800 kgf
52 mm170 kg/100m55600 kgf
56 mm197 kg/100m63600 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
