Technical rope data

LUPA® SQUARE WINDLASS

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter13–22 mm
Weight8.8–28.3 kg/100m
Breaking load3400–9000 kgf
Material
100% HT Polyamide Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Leisure Marine
Related markets
Leisure Marine

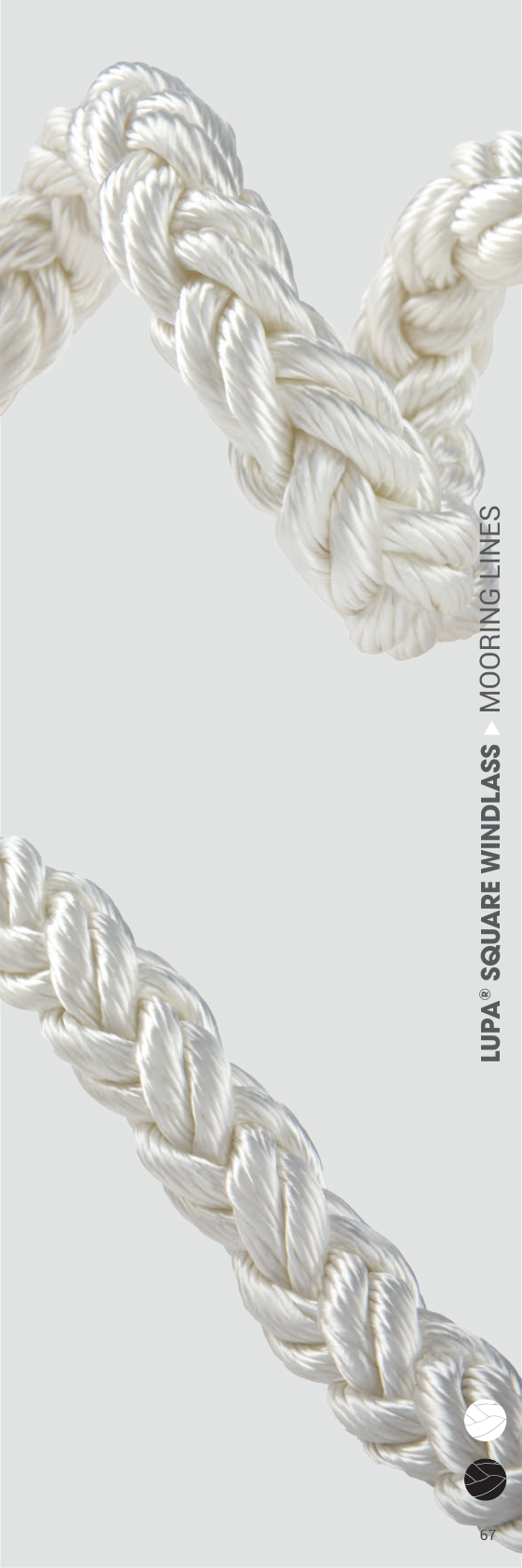

LUPA® SQUARE WINDLASS catalogue product image

Applications

Applications

Dock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkExtra Soft HandDurableHigh Breaking LoadEasy to SpliceExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 69

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Elongation at Break
Approx. %30-35
Standard
EN ISO 1140
Length
100-200 m Plastic/Wooden Spool or Coil
Type
L
Material
100% HT Polyamide Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
13 mm8.8 kg/100m3400 kgf
16 mm13.8 kg/100m4950 kgf
19 mm20.8 kg/100m6930 kgf
22 mm28.3 kg/100m9000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
