Technical rope data

LUPA® STATIC MAX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter10.5–15 mm
Weight6.9–13.87 kg/100m
Breaking load3540–6300 kgf
Material
HT Polyamide Fiber
Construction
48 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

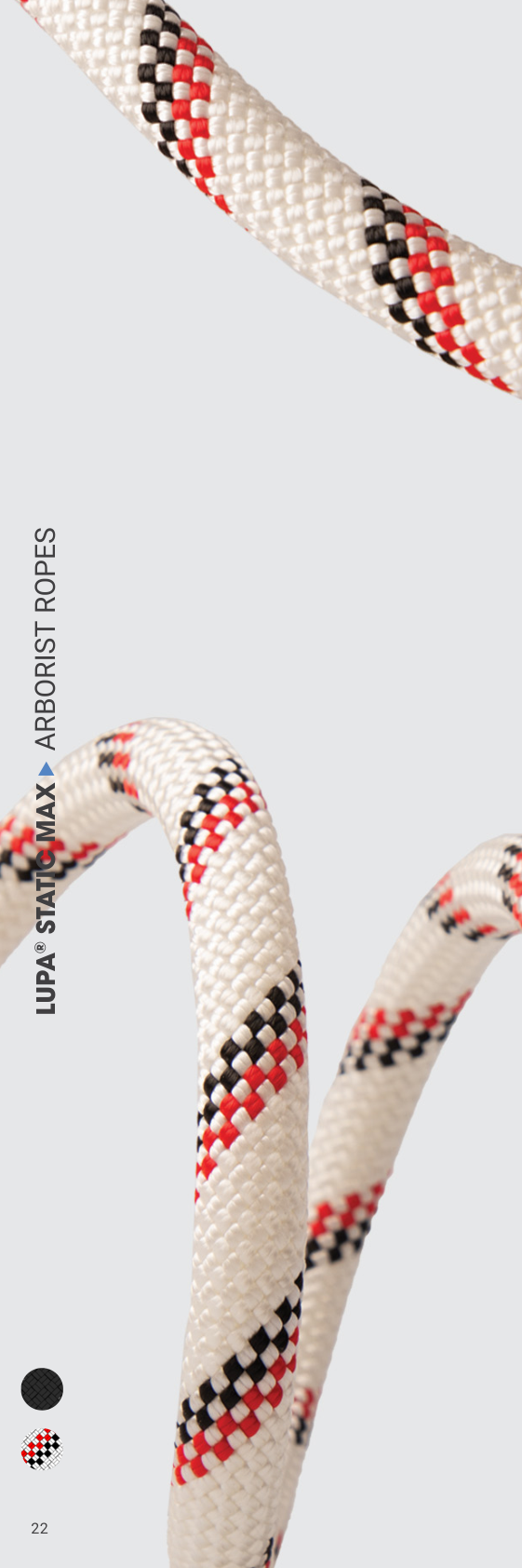

LUPA® STATIC MAX catalogue product image

Applications

Applications

Rope AccessAscending / DescendingRescue LineWork PositioningSafety LineRigging Line

Benefits

Benefits

Low StretchTight JacketExcellent Hand GripWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 24

Type
A
Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficent
Dry Abrasion
Good
Standard
EN 1891
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
10.5 mm6.9 kg/100m3540 kgf
11 mm7.8 kg/100m3825 kgf
12 mm9.2 kg/100m4140 kgf
13 mm10.7 kg/100m4740 kgf
15 mm13.87 kg/100m6300 kgf

Arborist Ropes 2025 · PDF 24

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
10.5236
112.243
122.535
131.936
151.827

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
