Technical rope data

LUPA® STATIC SPARTAN

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter11 mm
Weight7.4 kg/100m
Breaking load3390 kgf
Material
HT Polyamide Fiber
Construction
40 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

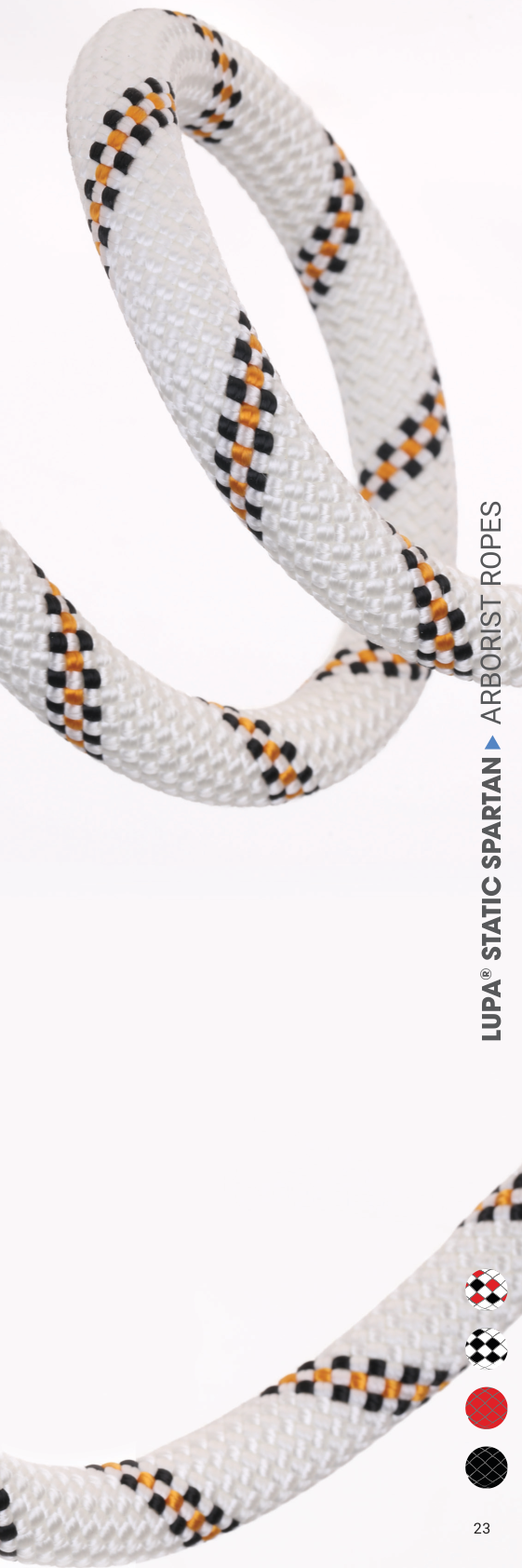

LUPA® STATIC SPARTAN catalogue product image

Applications

Applications

Rope AccessAscending / DescendingRescue LineWork PositioningSafety LineRigging Line

Benefits

Benefits

Low StretchTight JacketExcellent Hand GripWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 25

Type
A
Specific Gravity
1,14 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Sufficent
Dry Abrasion
Good
Standard
EN 1891
Length
100-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
11 mm7.4 kg/100m3390 kgf

Arborist Ropes 2025 · PDF 25

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
11335

Unspliced Break Load (All Tests are in Accordance with ISO 2307)
