IMEX

Technical rope data

LUPA® VIPERA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–72 mm
Weight4.1–322 kg/100m
Breaking load1420–112200 kgf
Material
100% HT Polyamide Fiber
Construction
16-20-24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine

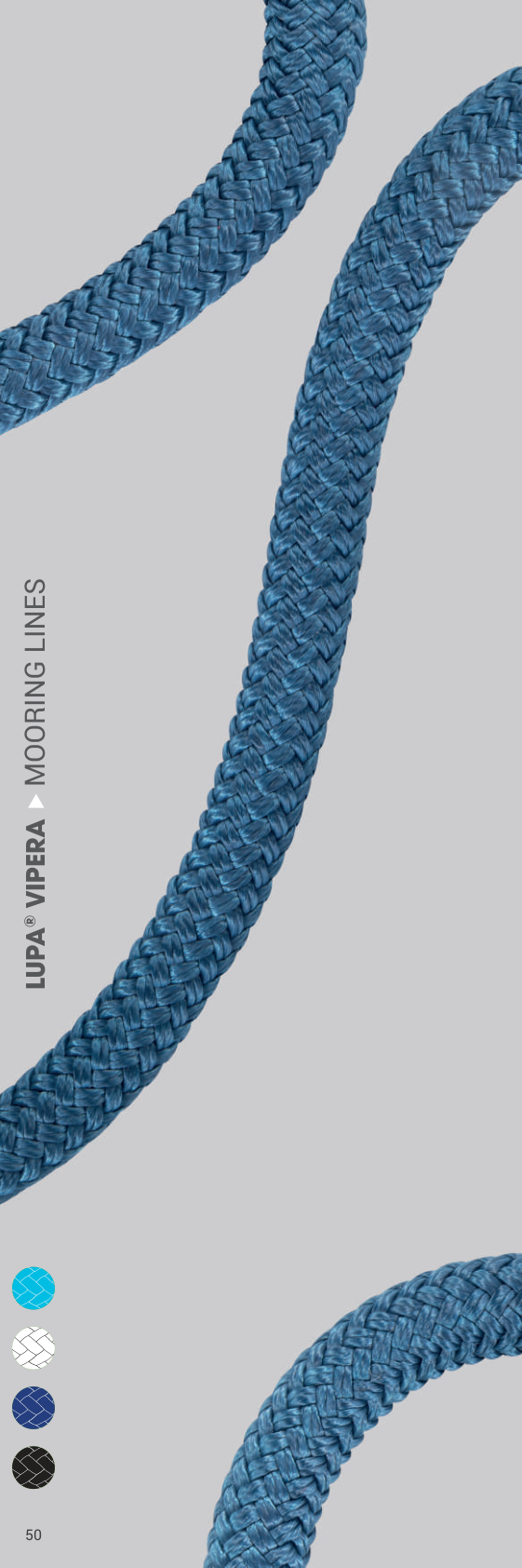

LUPA® VIPERA catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineVessel PendantTug Shock LineTug Pendant

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Shock AbsorptionSuperior Chafe Cover

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 29

Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficent
Dry Abrasion
Good
Standard
EN ISO 10554
Length
100-200 m Wooden Spool or Coil
Availability Note
Other Colours & Larger Diameters Upon Request
Material
100% HT Polyamide Fiber
Construction
Cover: 16-20-24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm4.1 kg/100m1420 kgf
10 mm6.2 kg/100m2220 kgf
12 mm9.2 kg/100m3190 kgf
14 mm12.4 kg/100m4330 kgf
16 mm16.25 kg/100m5640 kgf
18 mm20.4 kg/100m7120 kgf
20 mm25.5 kg/100m8790 kgf
22 mm31 kg/100m10600 kgf
24 mm36.65 kg/100m12640 kgf
26 mm43 kg/100m14790 kgf
28 mm49.75 kg/100m17130 kgf
30 mm56 kg/100m19686 kgf
32 mm63.7 kg/100m22338 kgf
36 mm80.6 kg/100m28254 kgf
40 mm99.5 kg/100m34782 kgf
44 mm120 kg/100m42024 kgf
48 mm143 kg/100m49980 kgf
52 mm168 kg/100m58548 kgf
56 mm195 kg/100m67830 kgf
60 mm224 kg/100m77724 kgf
64 mm255 kg/100m88434 kgf
72 mm322 kg/100m112200 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
