Technical rope data

LUPA® VIPERA GR/S

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter26–72 mm
Weight—
Breaking load21298–161568 kgf
Material
100% HT Polyamide Fiber
Construction
24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

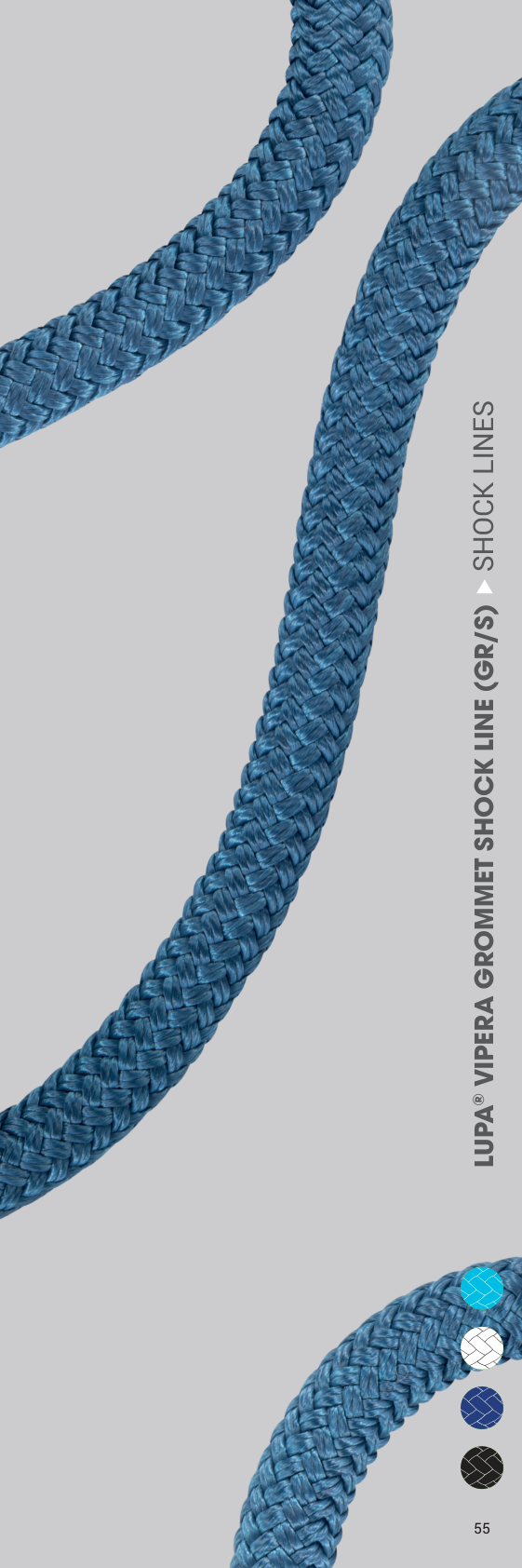

LUPA® VIPERA GR/S catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Shock AbsorptionEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 57

Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Standard
EN ISO 10554
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyamide Fiber
Construction
Cover: 24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
26 mm——21298 kgf
28 mm——24675 kgf
30 mm——28347 kgf
32 mm——32167 kgf
36 mm——40686 kgf
40 mm——50086 kgf
44 mm——60515 kgf
48 mm——71971 kgf
52 mm——84309 kgf
56 mm——97675 kgf
60 mm——111923 kgf
64 mm——127345 kgf
72 mm——161568 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
