IMEX

Technical rope data

LUPA® VIPERA PREMIER

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter30–56 mm
Weight55.6–191.5 kg/100m
Breaking load19700–67800 kgf
Material
100% HT Polyamide Fiber
Construction
32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

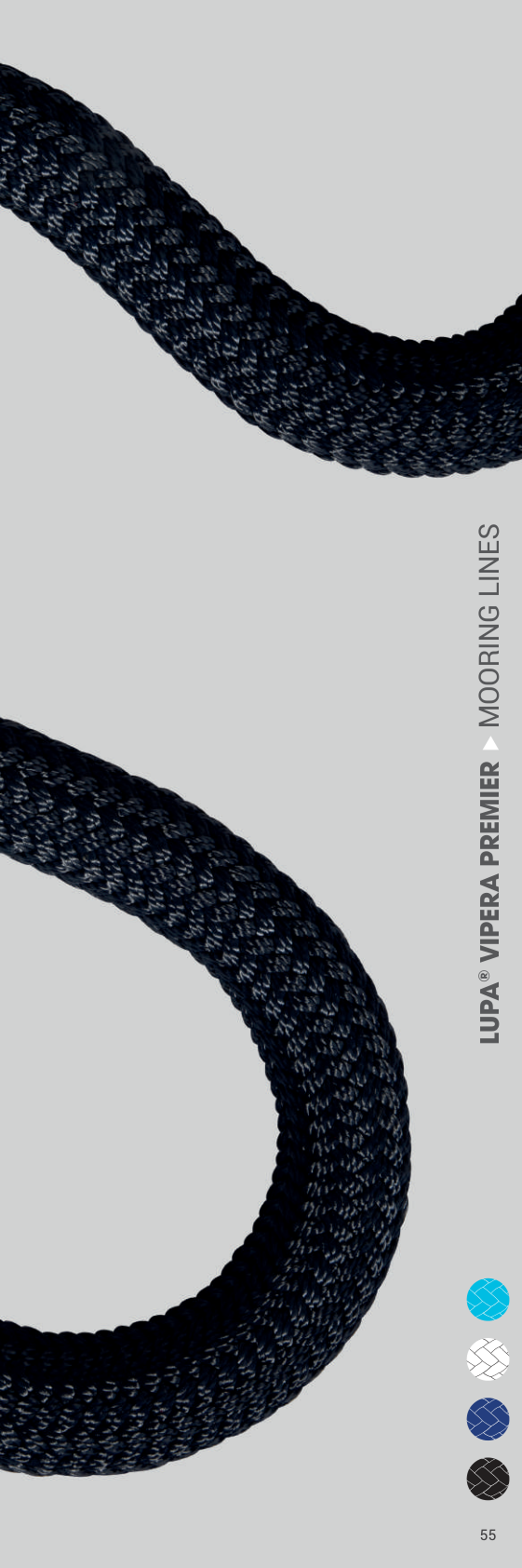

LUPA® VIPERA PREMIER catalogue product image

Applications

Applications

Dock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableSuperior Chafe CoverHigh Breaking LoadExcellent Shock Absorption

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 57

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficent
Dry Abrasion
Good
Elongation at Break
Approx. %30
Length
100-200 m Wooden Spool or Coil
Material
100% HT Polyamide Fiber
Construction
Cover: 32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
30 mm55.6 kg/100m19700 kgf
32 mm63.35 kg/100m22400 kgf
34 mm72.45 kg/100m25300 kgf
36 mm81 kg/100m28250 kgf
38 mm89.05 kg/100m31500 kgf
40 mm100.35 kg/100m34800 kgf
42 mm108.65 kg/100m38400 kgf
44 mm119.05 kg/100m42000 kgf
46 mm132.35 kg/100m46000 kgf
48 mm144.35 kg/100m50000 kgf
56 mm191.5 kg/100m67800 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
