Technical rope data

LUPA® VIPERA SL/S

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter32–72 mm
Weight63.7–322 kg/100m
Breaking load20104–112200 kgf
Material
100% HT Polyamide Fiber
Construction
24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

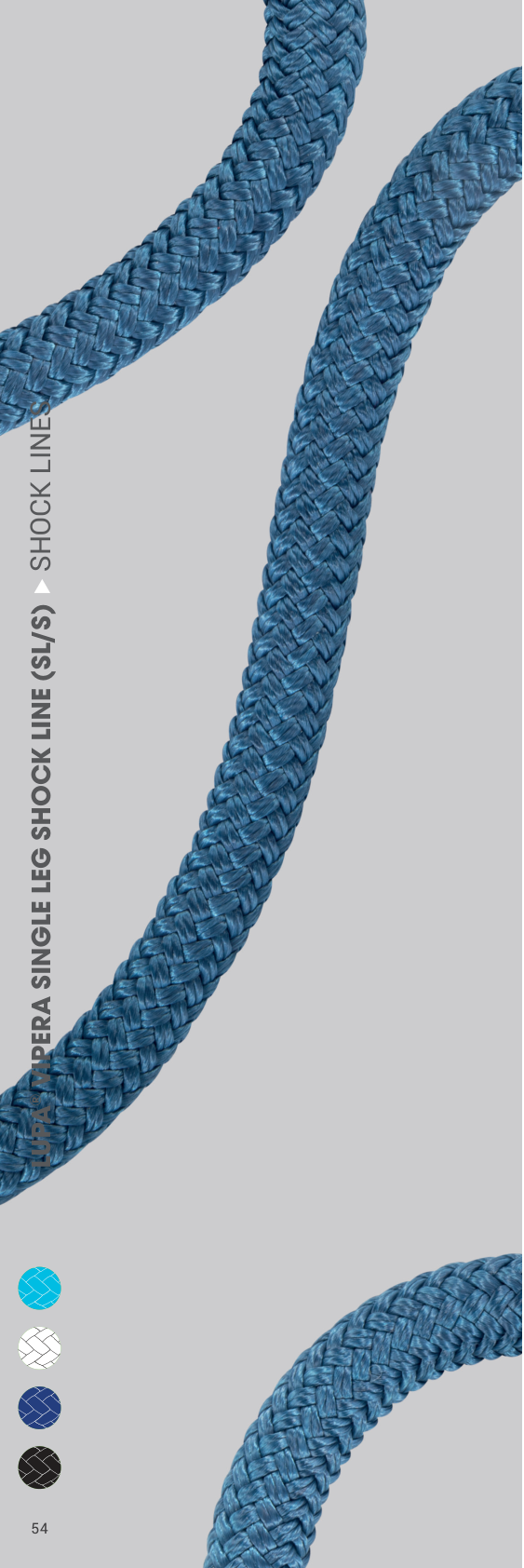

LUPA® VIPERA SL/S catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Shock AbsorptionEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 56

Specific Gravity
1,14 kg/dm³
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218°C
Critical Temperature
130°C
Elongation at Break
Approx. %30
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Standard
EN ISO 10554
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyamide Fiber
Construction
Cover: 24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
32 mm63.7 kg/100m22338 kgf20104 kgf
36 mm80.6 kg/100m28254 kgf25429 kgf
40 mm99.5 kg/100m34782 kgf31304 kgf
44 mm120 kg/100m42024 kgf37822 kgf
48 mm143 kg/100m49980 kgf44982 kgf
52 mm168 kg/100m58548 kgf52693 kgf
56 mm195 kg/100m67830 kgf61047 kgf
60 mm224 kg/100m77724 kgf69952 kgf
64 mm255 kg/100m88434 kgf79591 kgf
72 mm322 kg/100m112200 kgf100980 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
