Technical rope data

LUPA® VIPERA USA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter18–42 mm
Weight22.5–117 kg/100m
Breaking load9586–44400 kgf
Material
100% HT Polyamide Fiber
Construction
24 Plaited / 12 Plaited
Source catalogues
Leisure Marine

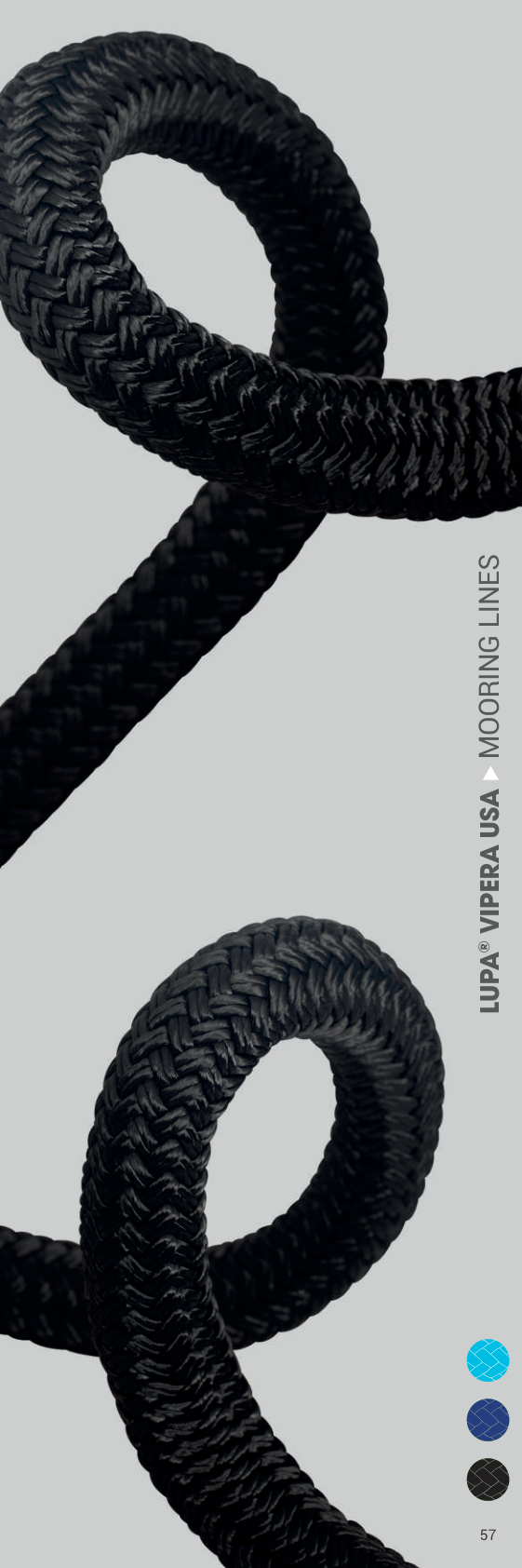

LUPA® VIPERA USA catalogue product image

Applications

Applications

Shock LineDock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableSuperior Chafe CoverHigh Breaking LoadExcellent Shock AbsorptionFlexible Cover

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 59

Specific Gravity
1,14 kg/dm3
UV Resistance
Very Good
Chemical Resistance
Good
Melting Point
218oC
Critical Temperature
130oC
Fiber Water Absorption
Approx. %3-4
Wet Abrasion
Sufficient
Dry Abrasion
Good
Elongation at Break
Approx. %30
Length
100-200 m Wooden Spool or Coil
Material
100% HT Polyamide Fiber
Construction
Cover: 24 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
18 mm22.5 kg/100m9586 kgf
22 mm30 kg/100m12866 kgf
24 mm40 kg/100m16902 kgf
28 mm50.5 kg/100m21191 kgf
30 mm59.25 kg/100m25580 kgf
32 mm68.5 kg/100m28255 kgf
36 mm89 kg/100m36580 kgf
40 mm105 kg/100m41120 kgf
42 mm117 kg/100m44400 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
