IMEX

Technical rope data

LUPES® CIRCUS TIGHT

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter10–20 mm
Weight6.9–29.9 kg/100m
Breaking load2300–9020 kgf
Material
HT Polyester Fiber
Construction
32 Plaited / 16 Plaited
Source catalogues
Arborist
Related markets
Arborist

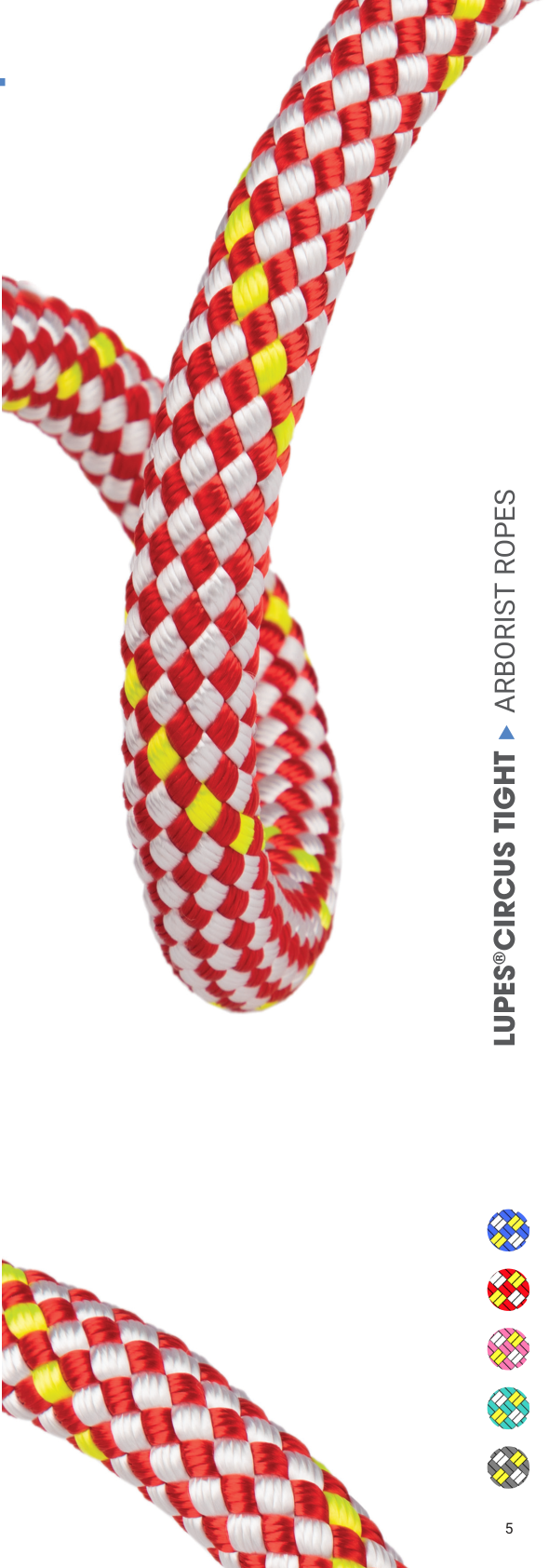

LUPES® CIRCUS TIGHT catalogue product image

Applications

Applications

Rigging Line

Benefits

Benefits

Easy to SpliceDurableVery Long Service LifeShares the Load Equally Between Cover and CoreStretches Less Than the Standard PolyesterFlexible

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 7

Type
A
Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Working Stretch
<4%
Wet Abrasion
Good
Dry Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
10 mm6.9 kg/100m2300 kgf
12 mm10.7 kg/100m3230 kgf
14 mm15 kg/100m4510 kgf
16 mm19.3 kg/100m5800 kgf
18 mm23.5 kg/100m7090 kgf
20 mm29.9 kg/100m9020 kgf

Arborist Ropes 2025 · PDF 7

Diameter (mm)Cover (%)
1042
1244
1444
1644
1844
2044

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
