IMEX

Technical rope data

LUPES® CORD

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–6 mm
Weight0.85–2.7 kg/100m
Breaking load180–660 kgf
Material
HT Polyester Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Leisure Marine

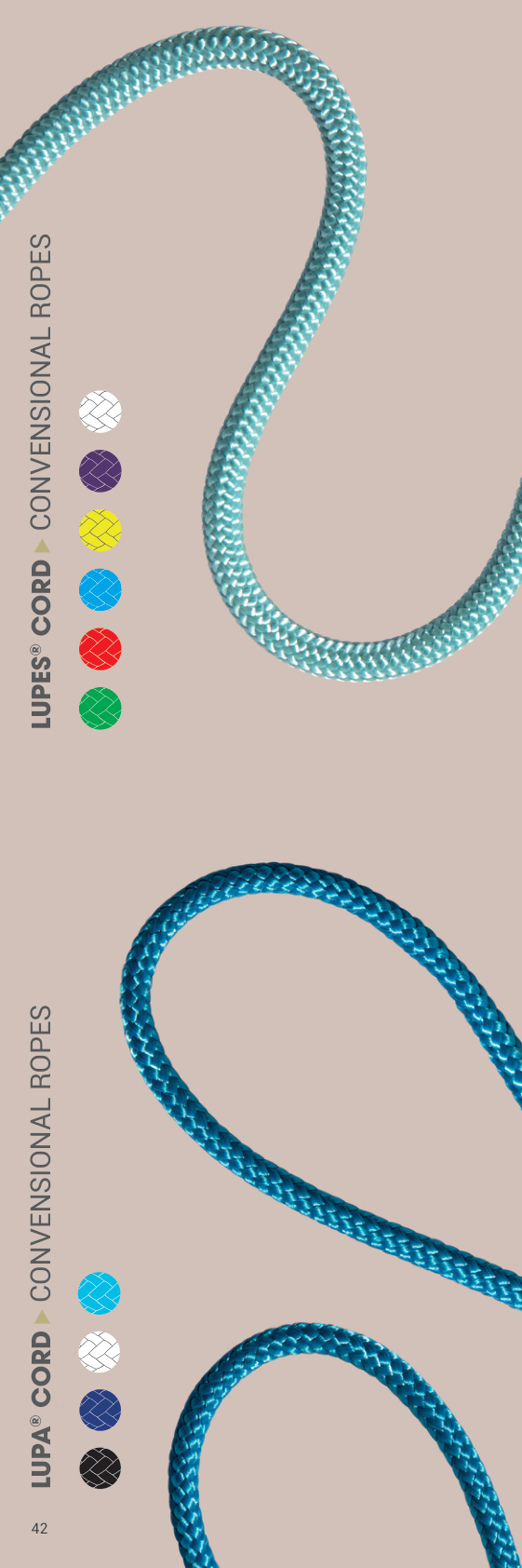

LUPES® CORD catalogue product image

Applications

Applications

Control LineLuff Line / Leech LineOther Fishing Line

Benefits

Benefits

Outstanding FlexibilityCost-EfficientLow Stretch

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 47

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
100-200 m Plastic Spool
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16 Plaited, Core: Parallel Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.85 kg/100m180 kgf
4 mm1.2 kg/100m300 kgf
5 mm1.95 kg/100m460 kgf
6 mm2.7 kg/100m660 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
