IMEX

Technical rope data

LUPES® EUROPA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter24–40 mm
Weight41.5–114.2 kg/100m
Breaking load11500–28500 kgf
Material
100% HT Polyester Fiber
Construction
24 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

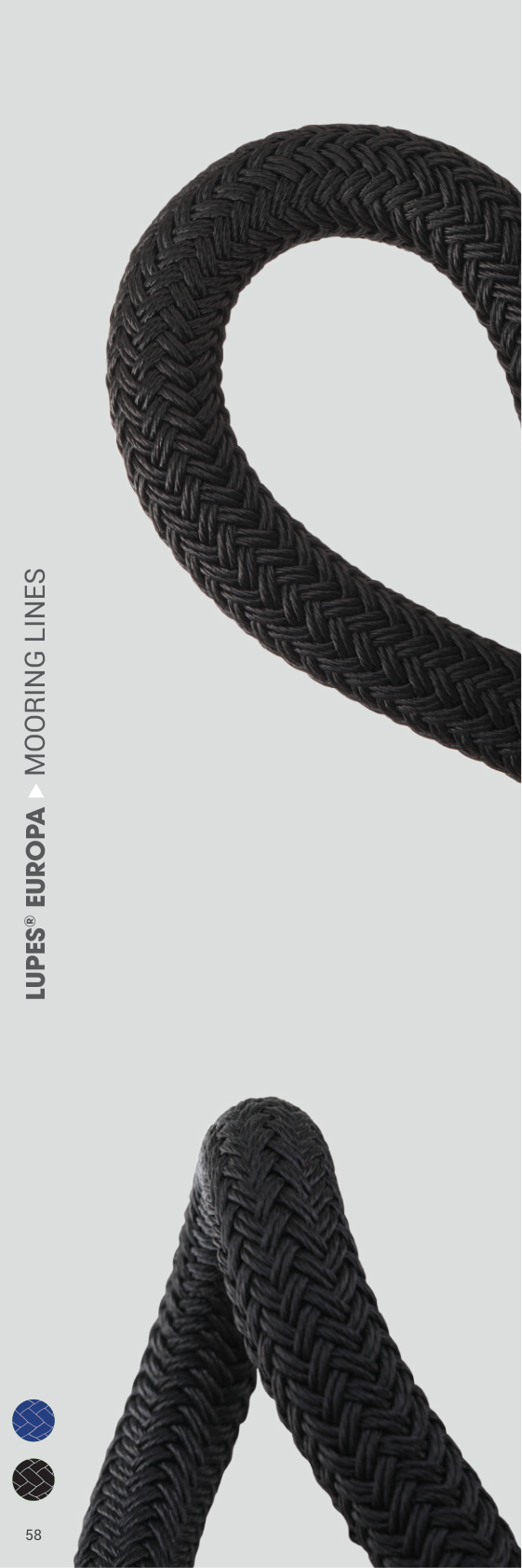

LUPES® EUROPA catalogue product image

Applications

Applications

Dock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSuperior Soft HandDurableFlexible CoverHigh Breaking LoadExcellent Abrasion Resistance

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 60

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
Approx. %15
Length
100-200 m Wooden Spool or Coil
Material
100% HT Polyester Fiber
Construction
Cover: 24 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
24 mm41.5 kg/100m11500 kgf
28 mm55.15 kg/100m15000 kgf
32 mm73.2 kg/100m20000 kgf
36 mm96.15 kg/100m24000 kgf
40 mm114.2 kg/100m28500 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
