Technical rope data

LUPES® LS MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–24 mm
Weight3.1–44.4 kg/100m
Breaking load1200–14250 kgf
Material
HT Polyester Fiber; Coated HT Polyester Fiber
Construction
24-32 Plaited : / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

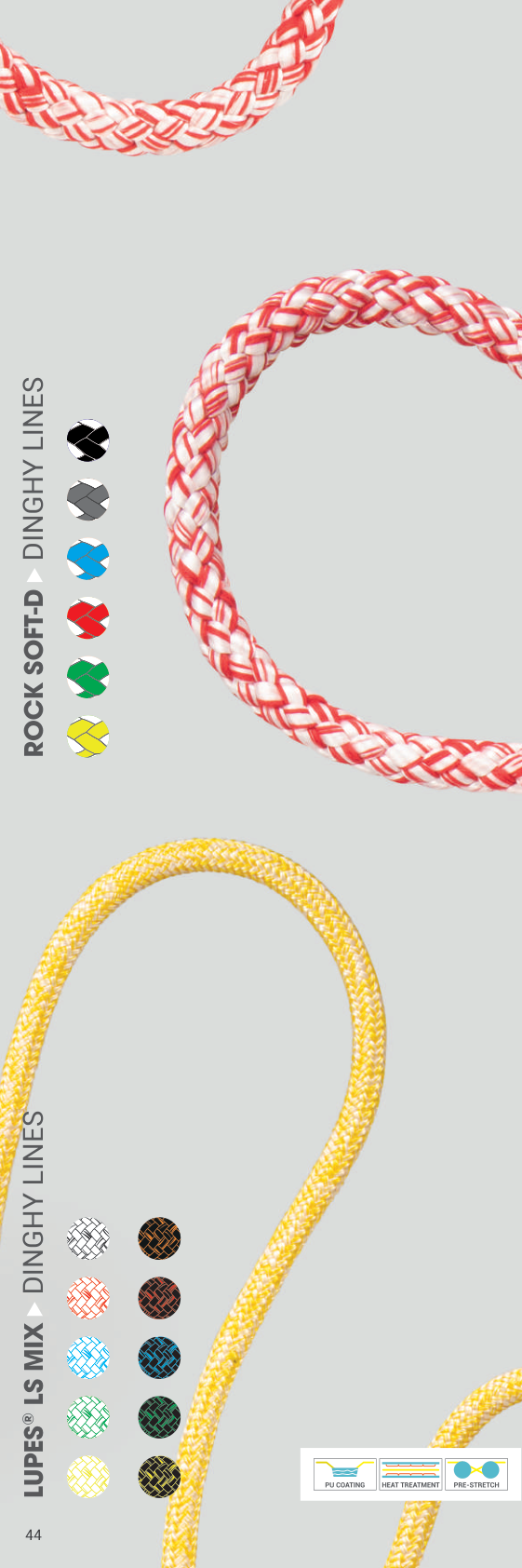

LUPES® LS MIX catalogue product image

Applications

Applications

Main HalyardGenoa HalyardSpi HalyardReefing LinesMain SheetGenoa SheetSpi Sheet

Benefits

Benefits

Easy to SpliceDurableVery Long Service LifeHigh Breaking LoadShares the Load Equally Between Cover and CoreStretches Less Than the Standard Polyester

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 36

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<4%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Standard
EN ISO 10547
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: Coated HT Polyester Fiber
Construction
Cover: 24-32 Plaited : Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm3.1 kg/100m1200 kgf
8 mm5.25 kg/100m1700 kgf
10 mm8.1 kg/100m2560 kgf
12 mm11.35 kg/100m3600 kgf
14 mm15.3 kg/100m4800 kgf
16 mm19.45 kg/100m6500 kgf
18 mm25.45 kg/100m8200 kgf
20 mm31.45 kg/100m10000 kgf
22 mm37.9 kg/100m12000 kgf
24 mm44.4 kg/100m14250 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
