Technical rope data

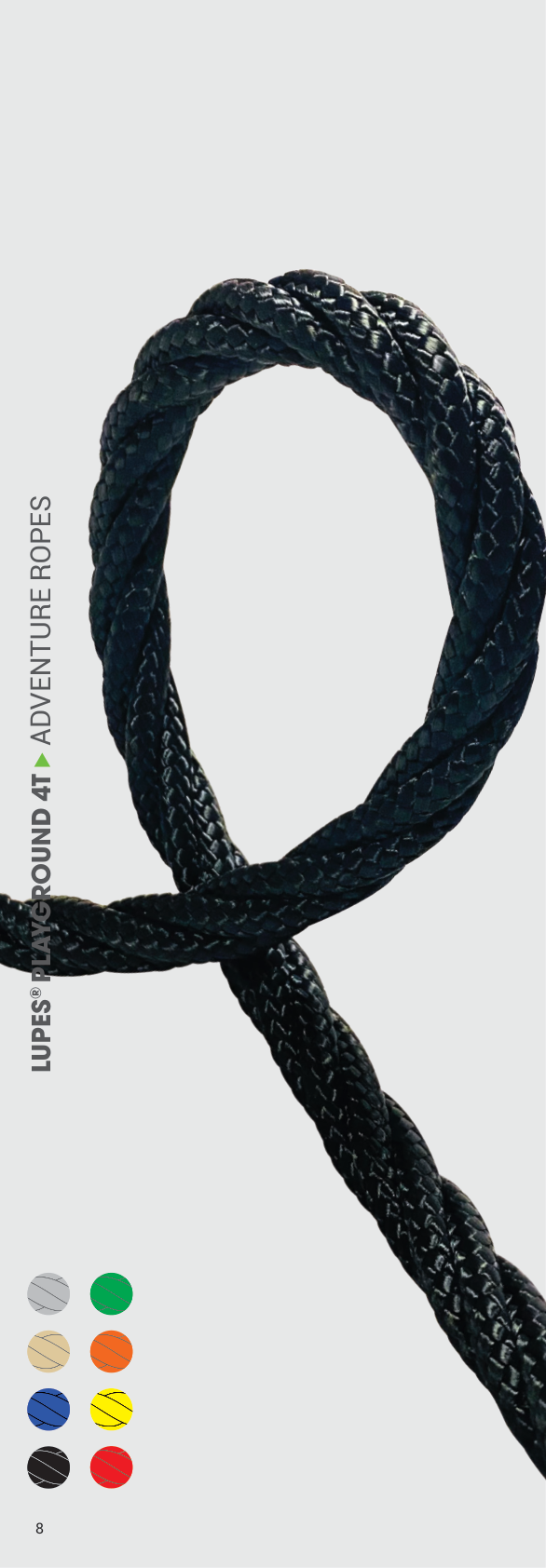

LUPES® PG 4T

Name: LUPES® PG 4T
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter14 mm

Weight30 kg/100m

Breaking load3000 kgf

Applications

Joy Ring

Benefits

FlexibleGood GripGentle on HandsGood Wear Resistance

Source catalogue data

UV Resistance: Excellent
Chemical Resistance: Good
Melting Point: 256°C
Critical Temperature: 170°C
Fiber Water Absorption: Approx. %1-2
Wet Abrasion: Good
Dry Abrasion: Good
Length: 250-500 m Wooden Spool
Availability Note: Other Colours on Request
Other Product Note: PG ropes also offered in glued version against vandalism / localized cuts.

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load
14 mm	— kg/100m	3000 kgf

Diameter (mm)	Strand construction	Wire diameter (mm)	Core	Weight unit (source)	Weight (source value)
14	4x7	2,0 (7x7)	-	kg/m	0.3

Unspliced Break Load (All tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
