Technical rope data

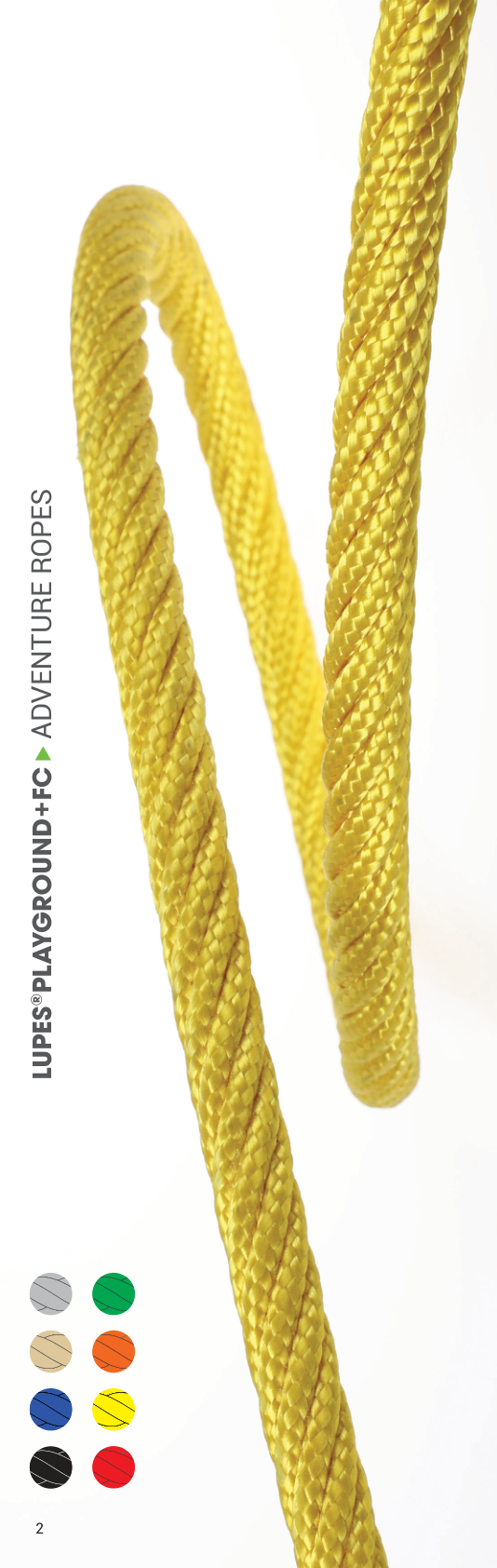

LUPES® PG+FC

Name: LUPES® PG+FC
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter16–20 mm

Weight37–50 kg/100m

Breaking load3250–5200 kgf

Applications

Climbing NetsFencing

Benefits

Good GripGentle on HandsGood Wear Resistance

Source catalogue data

UV Resistance: Excellent
Chemical Resistance: Good
Melting Point: 256°C
Critical Temperature: 170°C
Fiber Water Absorption: Approx. %1-2
Wet Abrasion: Good
Dry Abrasion: Good
Length: 250-500 m Wooden Spool
Availability Note: Other Colours on Request
Other Product Note: PG ropes also offered in glued version against vandalism / localized cuts.

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Diameter (mm)	Strand construction	Wire diameter (mm)	Core	Weight unit (source)	Weight (source value)
16	6x7	2,6 (1x7)	6,5 RR PES	kg/m	0.37
18	6x9	3,5 (1x9)	6,5 RR PES	kg/m	0.45
20	6x9	3,5 (1x9)	8,0 RR PES	kg/m	0.5

Unspliced Break Load (All tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
