IMEX

Technical rope data

LUPES® PLAIN TIGHT

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–24 mm
Weight3.15–44.8 kg/100m
Breaking load1080–13100 kgf
Material
HT Polyester Fiber
Construction
32 Plaited : / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

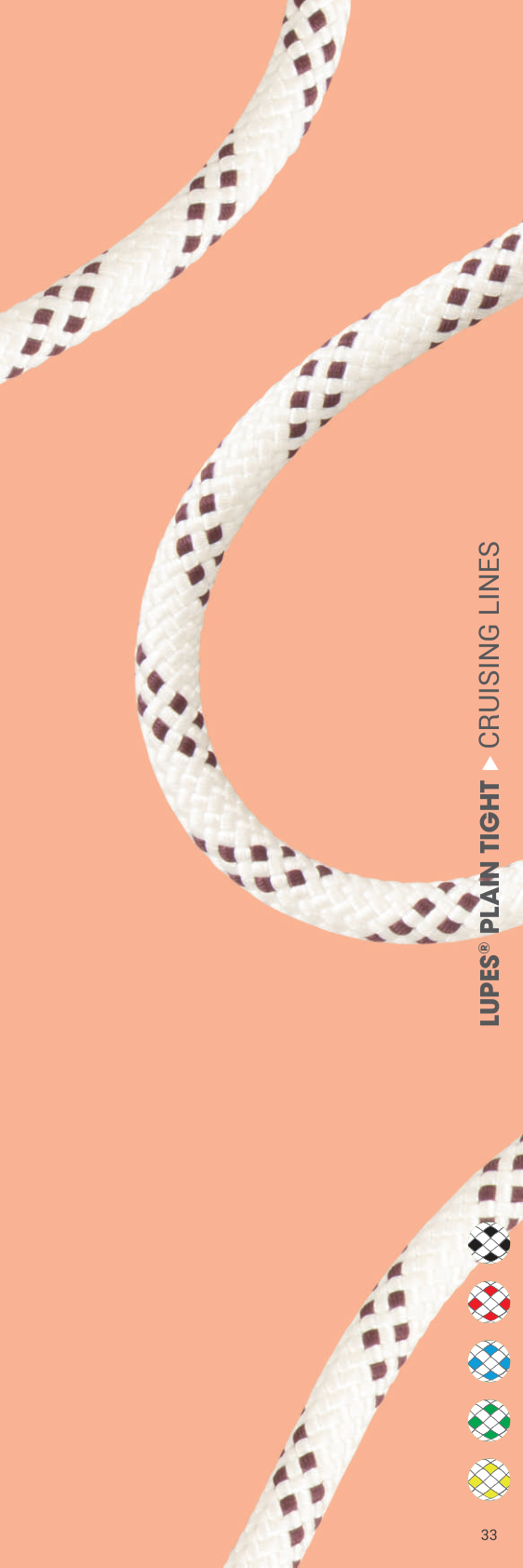

LUPES® PLAIN TIGHT catalogue product image

Applications

Applications

Main SheetGenoa SheetSpi SheetSpi GuysSpi Pole UphaulGenova Car TravellerMain Car Traveller

Benefits

Benefits

Cost-EfficientDurableVery Long Service LifeFlexible

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 35

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Standard
EN ISO 10547
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 32 Plaited : Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm3.15 kg/100m1080 kgf
8 mm5.3 kg/100m1550 kgf
10 mm8.45 kg/100m2330 kgf
12 mm11.25 kg/100m3270 kgf
14 mm15.45 kg/100m4370 kgf
16 mm19.65 kg/100m5630 kgf
18 mm25.7 kg/100m7000 kgf
20 mm31.75 kg/100m8600 kgf
22 mm38.25 kg/100m10300 kgf
24 mm44.8 kg/100m13100 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
