IMEX

Technical rope data

LUPES® PLAIN W-AP

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–10.5 mm
Weight5.25–8.25 kg/100m
Breaking load2053–2988 kgf
Material
50% Twaron® Fiber + 50% HT Polyester Fiber; HT Polyester Fiber
Construction
32 Plaited / 12 Plaited
Source catalogues
Arborist
Related markets
Arborist

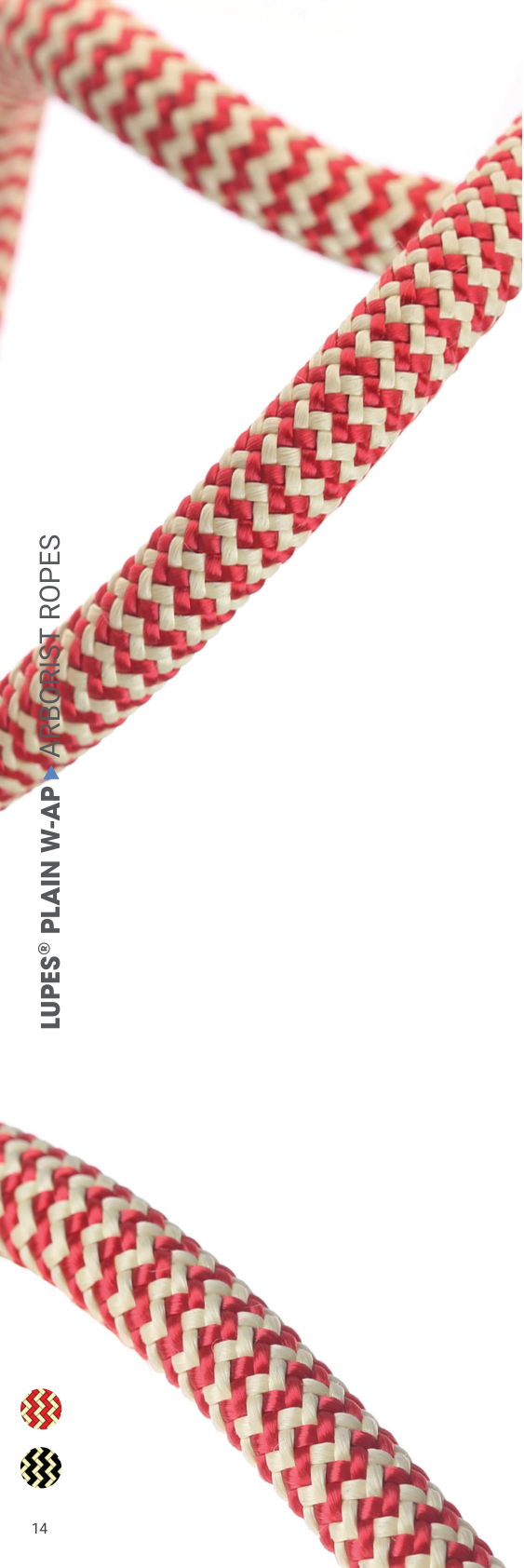

LUPES® PLAIN W-AP catalogue product image

Applications

Applications

Hitch CordAccessory Cord

Benefits

Benefits

Very Good Heat ResistanceEasy to SpliceGood GripWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 16

Specific Gravity
1,40 kg/dm3
UV Resistance
Poor
Chemical Resistance
Excellent
Melting Point
256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Very Good
Dry Abrasion
Very Good
Standard
EN 564 (Only Applies to 8 mm)
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm5.25 kg/100m2053 kgf
10.5 mm8.25 kg/100m2988 kgf

Arborist Ropes 2025 · PDF 16

Diameter (mm)Cover (%)
853
10.545

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
