Technical rope data

LUPES® ROUND

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter18–96 mm
Weight27.15–699 kg/100m
Breaking load7640–175000 kgf
Material
100% HT Polyester Fiber
Construction
12 Strand Plaited
Source catalogues
Leisure Marine

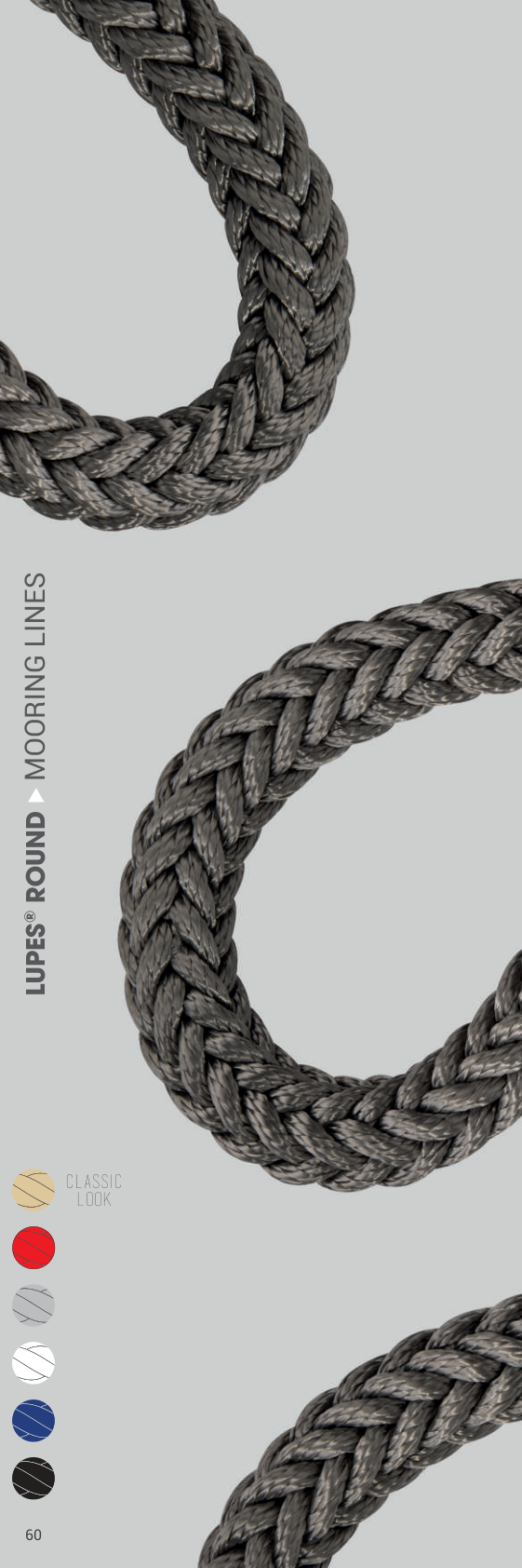

LUPES® ROUND catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineVessel PendantTug Main Tow LineTug Shock Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadEasy to SpliceExcellent Abrasion Resistance

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 62

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
Approx. %15-20
Standard
EN ISO 1141
Length
100-200 m Wooden Spool or Coil
Type
T
Material
100% HT Polyester Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
18 mm27.15 kg/100m7640 kgf
20 mm30.4 kg/100m8250 kgf
22 mm36.7 kg/100m10000 kgf
24 mm43.7 kg/100m11500 kgf
26 mm51.2 kg/100m13500 kgf
28 mm59.5 kg/100m15500 kgf
30 mm68.3 kg/100m17750 kgf
32 mm77.7 kg/100m20000 kgf
34 mm88 kg/100m22500 kgf
36 mm98.4 kg/100m25000 kgf
38 mm109.7 kg/100m29000 kgf
40 mm121 kg/100m33000 kgf
42 mm134 kg/100m36250 kgf
44 mm147 kg/100m39500 kgf
46 mm161 kg/100m42750 kgf
48 mm175 kg/100m46000 kgf
52 mm205 kg/100m54000 kgf
56 mm238 kg/100m62000 kgf
60 mm273 kg/100m71000 kgf
64 mm311 kg/100m80000 kgf
72 mm393 kg/100m100000 kgf
80 mm486 kg/100m123000 kgf
88 mm588 kg/100m148000 kgf
96 mm699 kg/100m175000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
