Technical rope data

LUPES® RUNNER

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter3–6 mm
Weight0.7–2.75 kg/100m
Breaking load190–870 kgf
Material
HT Polyester Fiber
Construction
16 Plaited / Parallel Yarn
Source catalogues
Commercial Marine
Related markets
Commercial Marine

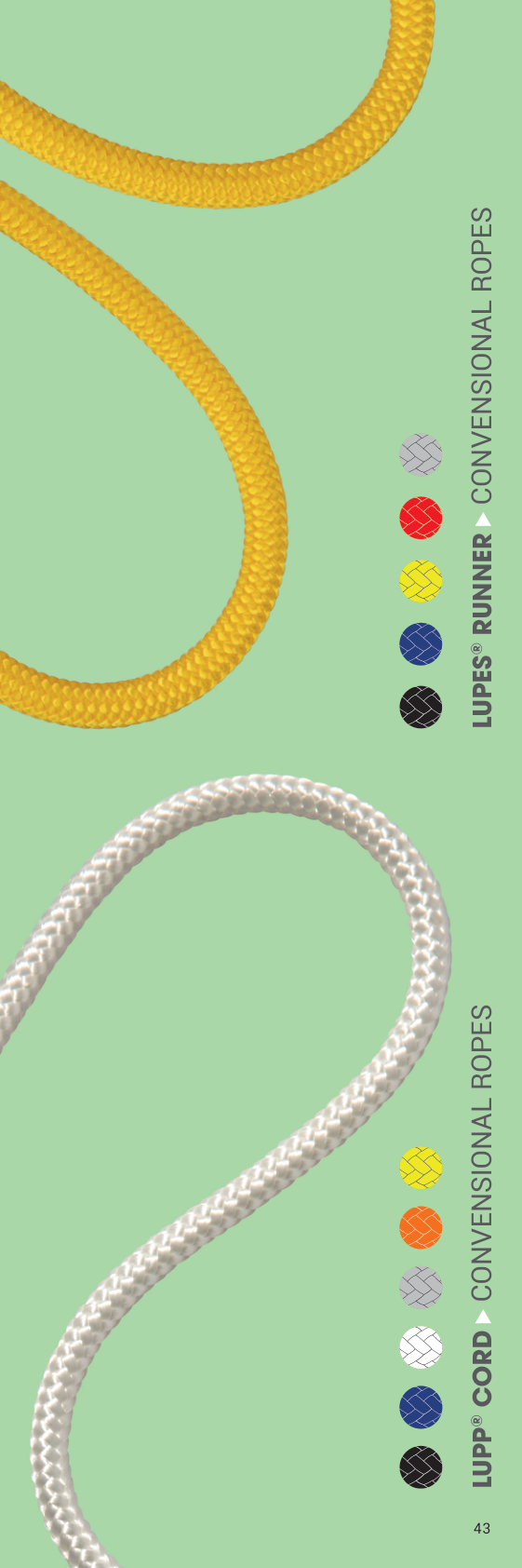

LUPES® RUNNER catalogue product image

Applications

Applications

Other Fishing Line

Benefits

Benefits

Outstanding FlexibilityCost-EfficientLowest Stretch in Standard Polyester

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 45

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<4%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
100-200 m Plastic Spool
Availability Note
Other Colours Upon Request
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16 Plaited Core: Parallel Yarn

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.7 kg/100m190 kgf
4 mm1 kg/100m390 kgf
5 mm1.65 kg/100m670 kgf
6 mm2.75 kg/100m870 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
