IMEX

Technical rope data

LUPES® SAFETY NET

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter2–3 mm
Weight0.32–0.72 kg/100m
Breaking load—
Material
HT Polyester Fiber
Construction
12-16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

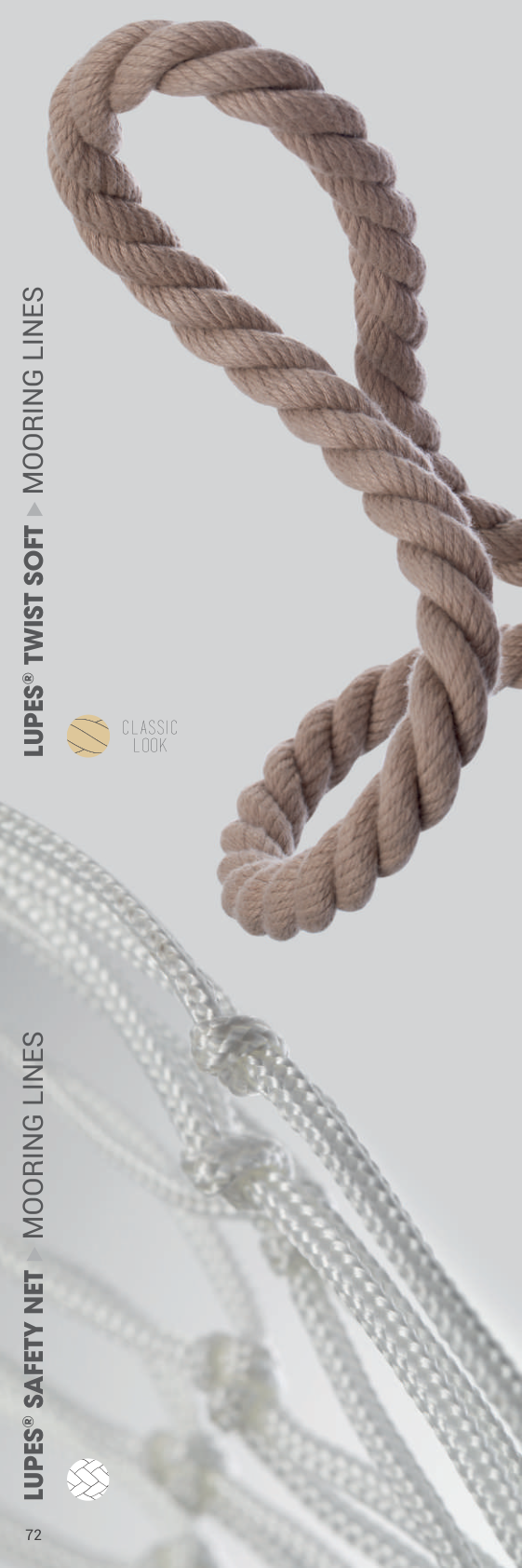

LUPES® SAFETY NET catalogue product image

Applications

Applications

Guard Rail Netting

Benefits

Benefits

Mesh Width Approx. 45 mmWidth of Net 60 cm (2 mm-2,5 mm)Width of Net 80 cm (3 mm)

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 74

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
Approx. %1-2
Length
100-200 m Plastic Spool
Material
HT Polyester Fiber
Construction
12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

Leisure Marine Ropes 2025 · PDF 74

Diameter (mm)Weight (kg/100m)
20.32
2.50.50
30.72

Unspliced Break Load (All tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
