IMEX

Technical rope data

LUPES® SOFT

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–16 mm
Weight2.7–17.15 kg/100m
Breaking load1080–5630 kgf
Material
Polyester Staple Fiber; HT Polyester Fiber
Construction
16-20-24 Plaited : / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

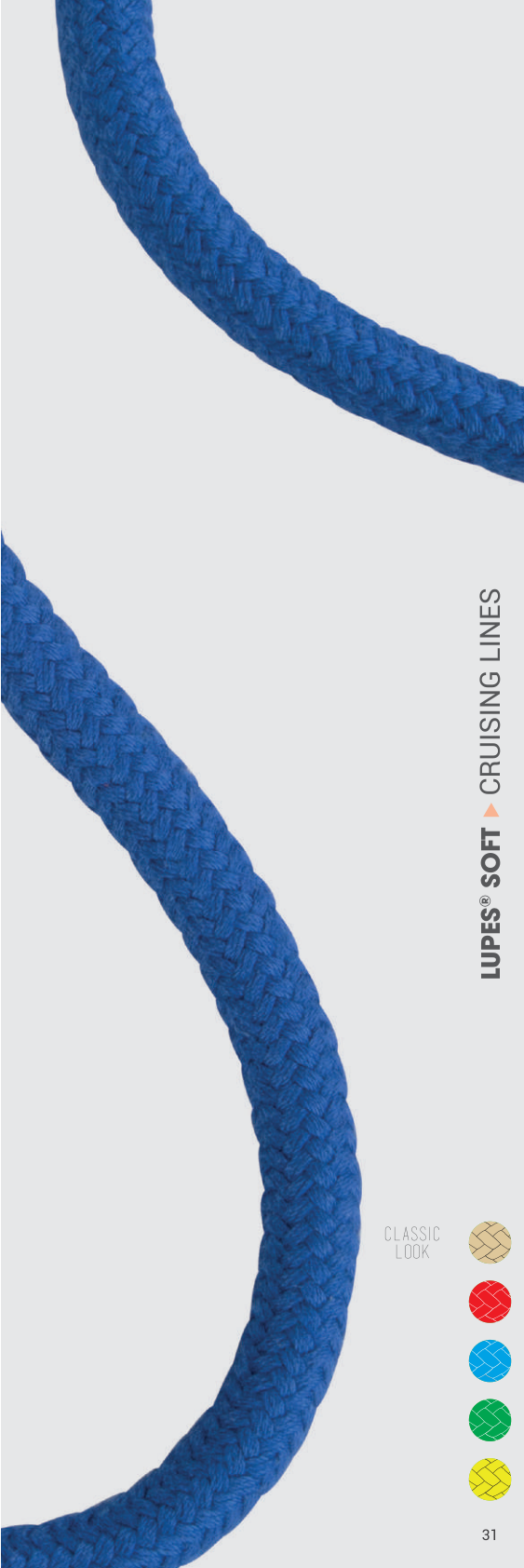

LUPES® SOFT catalogue product image

Applications

Applications

Main SheetGenoa SheetSpi Sheet

Benefits

Benefits

Easy to SpliceSuitable for WinchesExcellent GripSupple SurfaceOutstanding Flexibility

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 33

Specific Gravity
1,38 kg/dm3
UV Resistance
Good
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Length
100-200 m Plastic Spool
Material
Cover: Polyester Staple Fiber Core: HT Polyester Fiber
Construction
Cover: 16-20-24 Plaited : Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm2.7 kg/100m1080 kgf
8 mm4.1 kg/100m1550 kgf
10 mm6.65 kg/100m2330 kgf
12 mm9.5 kg/100m3270 kgf
14 mm13.6 kg/100m4370 kgf
16 mm17.15 kg/100m5630 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
