IMEX

Technical rope data

LUPES® SOLID

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–8 mm
Weight0.75–3.75 kg/100m
Breaking load130–780 kgf
Material
100% HT Polyester Fiber
Construction
Solid Braid (12 Plaited)
Source catalogues
Leisure Marine
Related markets
Leisure Marine

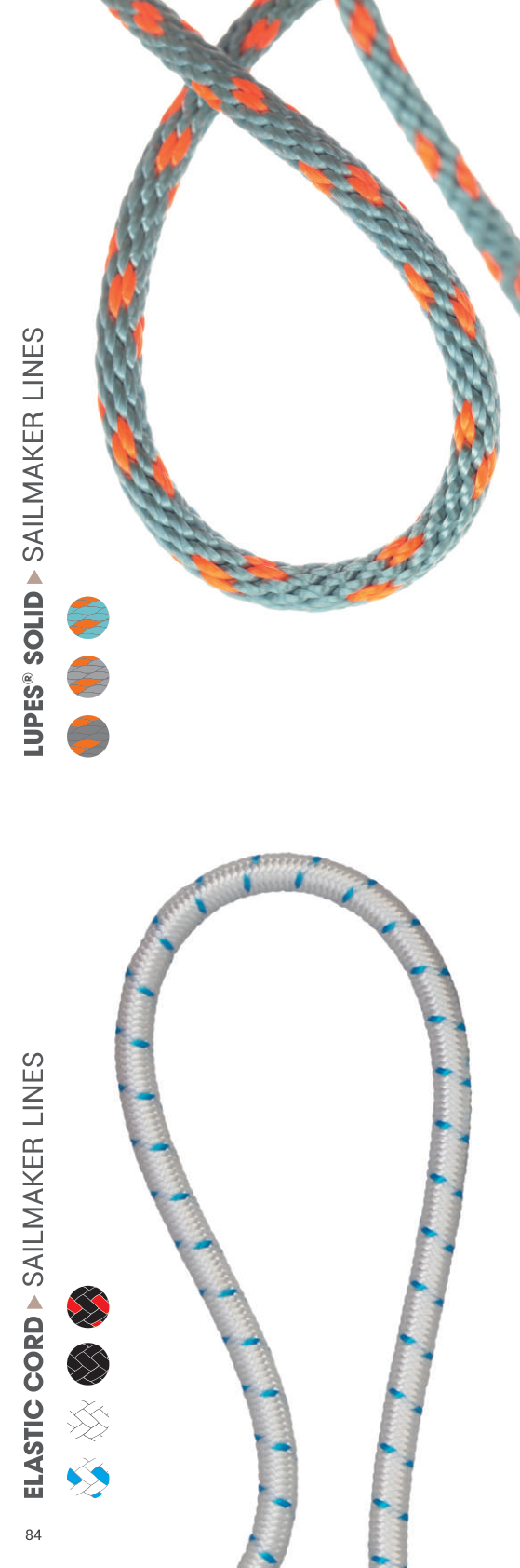

LUPES® SOLID catalogue product image

Applications

Applications

Luff Line/Leech Line

Benefits

Benefits

Easy HandlingVery Stable Round Cross-Section

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 86

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic Spool
Material
100% HT Polyester Fiber
Construction
Solid Braid (12 Plaited)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.75 kg/100m130 kgf
4 mm1.15 kg/100m220 kgf
5 mm1.5 kg/100m330 kgf
6 mm2.25 kg/100m450 kgf
8 mm3.75 kg/100m780 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
