Technical rope data

LUPES® SQUARE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12–56 mm
Weight10.9–238 kg/100m
Breaking load2875–61700 kgf
Material
100% HT Polyester Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Leisure Marine

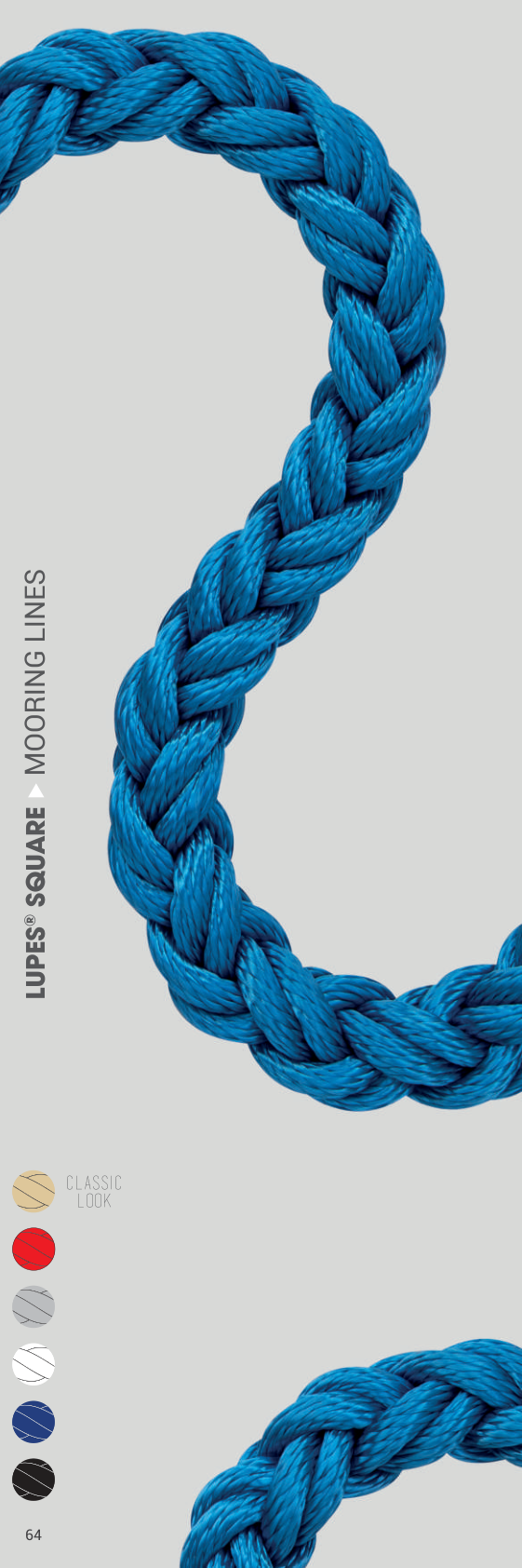

LUPES® SQUARE catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineVessel PendantTug Shock Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableHigh Breaking LoadEasy to SpliceExcellent Abrasion Resistance

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 66

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
Approx. %15-20
Standard
EN ISO 1141
Length
100-200 m Wooden Spool or Coil
Type
L
Material
100% HT Polyester Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12 mm10.9 kg/100m2875 kgf
14 mm14.9 kg/100m3875 kgf
16 mm19.4 kg/100m5000 kgf
18 mm24.6 kg/100m6250 kgf
20 mm30.4 kg/100m8250 kgf
22 mm36.7 kg/100m10000 kgf
24 mm43.7 kg/100m11500 kgf
26 mm51.2 kg/100m13500 kgf
28 mm59.5 kg/100m15500 kgf
30 mm68.3 kg/100m17500 kgf
32 mm77.7 kg/100m20000 kgf
34 mm88 kg/100m22500 kgf
36 mm98.4 kg/100m25000 kgf
38 mm109.7 kg/100m29000 kgf
40 mm121 kg/100m33000 kgf
44 mm147 kg/100m39750 kgf
48 mm175 kg/100m46500 kgf
52 mm205 kg/100m53800 kgf
56 mm238 kg/100m61700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
