IMEX

Technical rope data

LUPES® SWIFT MCF

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–24 mm
Weight5–53.1 kg/100m
Breaking load1500–16800 kgf
Material
HT Coated Polyester Fiber; HT Polyester Fiber
Construction
16-20-24 Plaited / 16 Plaited
Source catalogues
Arborist
Related markets
Arborist

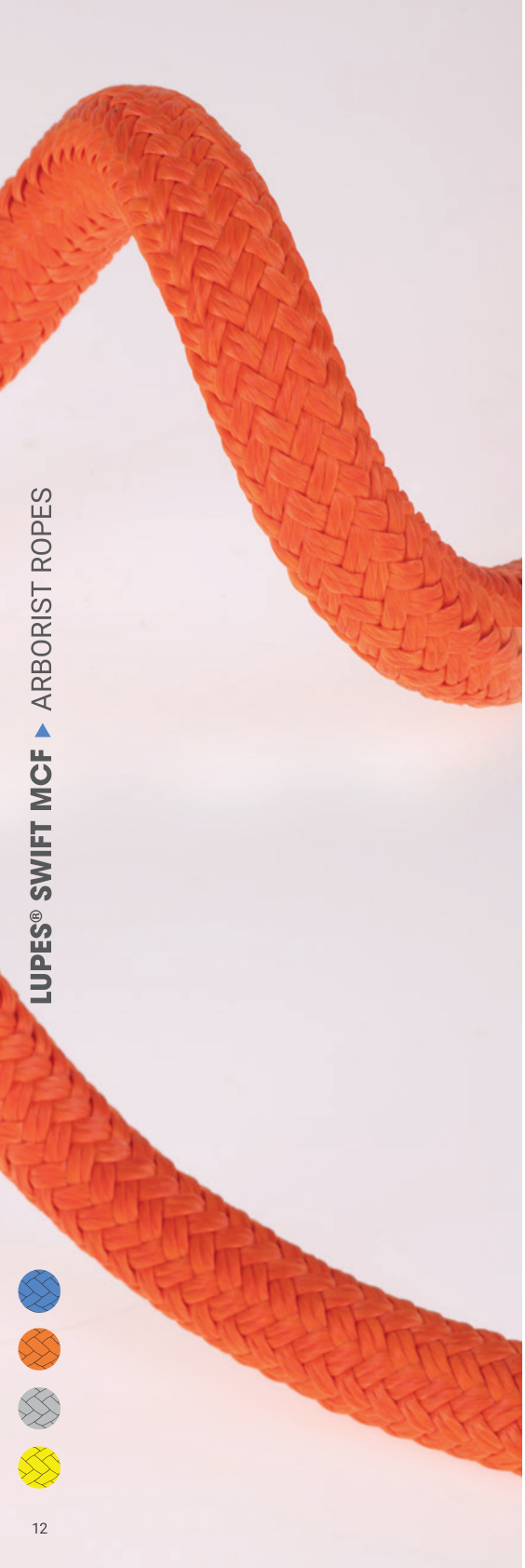

LUPES® SWIFT MCF catalogue product image

Applications

Applications

Rigging Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible Cover

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 14

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Elongation at Break
Approx. %15
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Very Good
Dry Abrasion
Very Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm5 kg/100m1500 kgf
9 mm7 kg/100m2400 kgf
11 mm9.6 kg/100m3300 kgf
12 mm12.8 kg/100m4500 kgf
14 mm17.2 kg/100m5700 kgf
16 mm21.8 kg/100m7000 kgf
18 mm28.1 kg/100m8700 kgf
22 mm42.3 kg/100m12800 kgf
24 mm53.1 kg/100m16800 kgf
