Technical rope data

LUPES® TOUGH

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–8 mm
Weight1–5.4 kg/100m
Breaking load250–1250 kgf
Material
HT Polyester Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Leisure Marine
Related markets
Leisure Marine

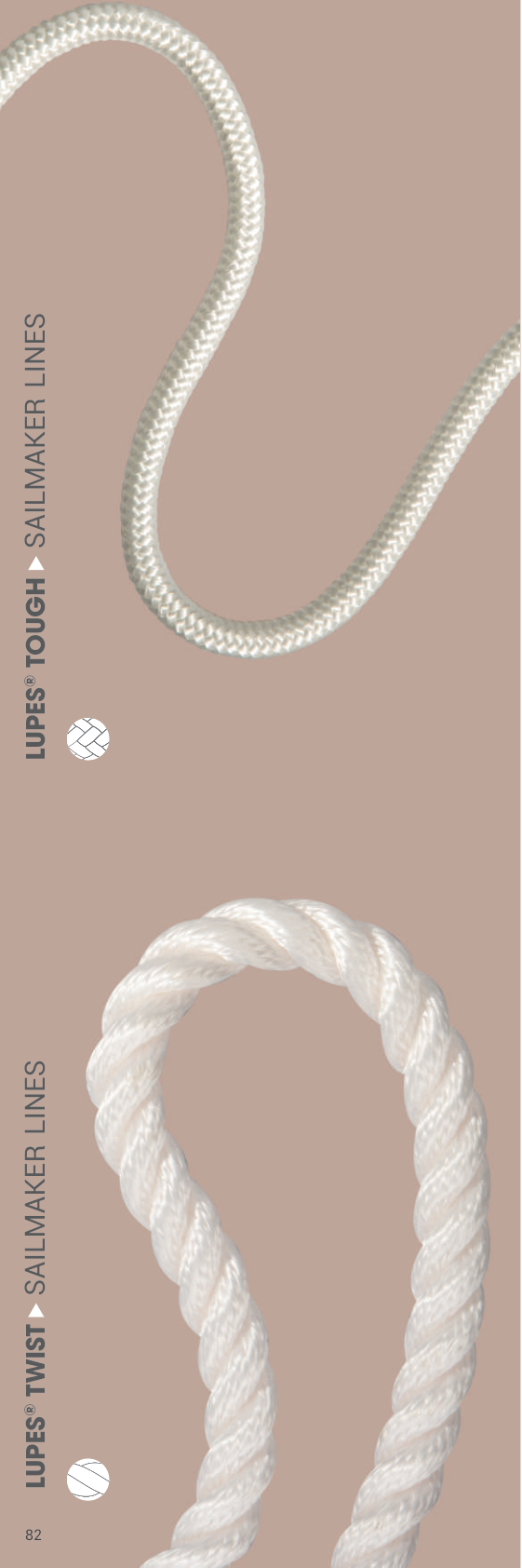

LUPES® TOUGH catalogue product image

Applications

Applications

Leech Line

Benefits

Benefits

Very Small Lay LengthHighly CompactLow StretchSmooth SheatingExcellent Stiffness & Roundness

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 84

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Length
100-200 m Plastic Spool
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16 Plaited Core: Parallel Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm1 kg/100m250 kgf
4 mm1.45 kg/100m375 kgf
5 mm1.95 kg/100m500 kgf
6 mm2.85 kg/100m725 kgf
7 mm3.9 kg/100m1000 kgf
8 mm5.4 kg/100m1250 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
