IMEX

Technical rope data

LUPES® TWIST SOFT

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–20 mm
Weight5.05–30.25 kg/100m
Breaking load850–5500 kgf
Material
Polyester Staple Fiber
Construction
3 Strand Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

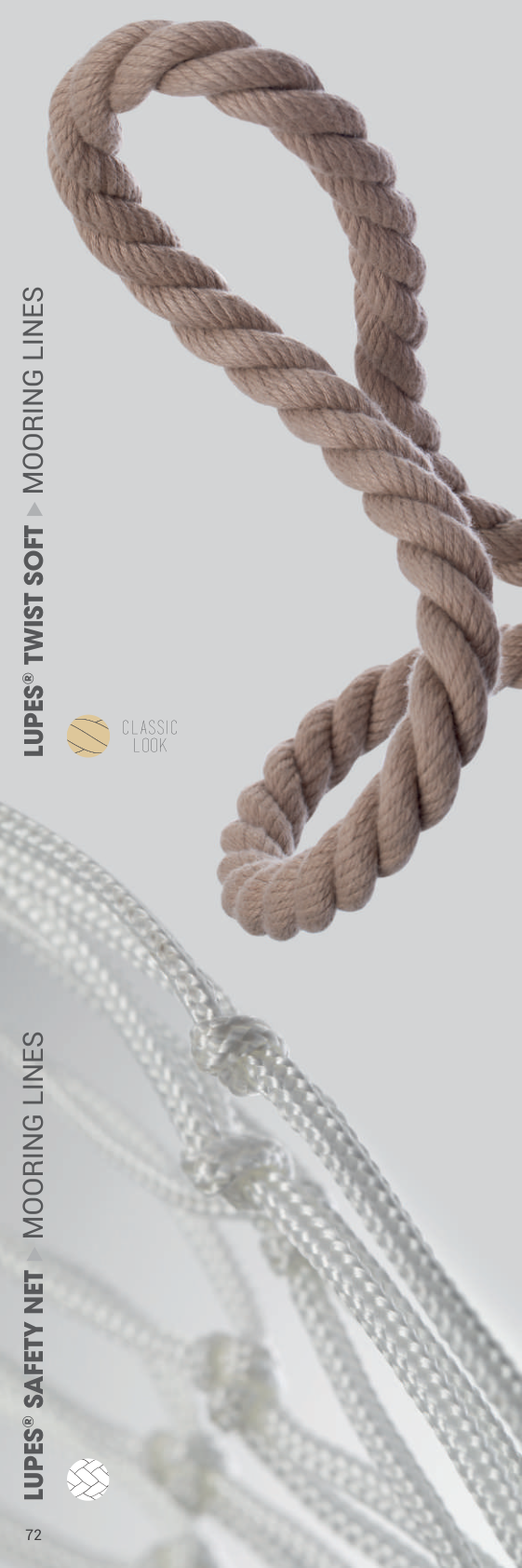

LUPES® TWIST SOFT catalogue product image

Applications

Applications

Dock Line

Benefits

Benefits

Soft HandEasy to SpliceClassic Look

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 74

Specific Gravity
1,38 kg/dm3
UV Resistance
Good
Chemical Resistance
Good
Melting Point
225oC
Critical Temperature
170oC
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Elongation at Break
Approx. %15-20
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Polyester Staple Fiber
Construction
3 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm5.05 kg/100m850 kgf
10 mm7.55 kg/100m1200 kgf
12 mm10.1 kg/100m1600 kgf
14 mm15.1 kg/100m2400 kgf
16 mm18.9 kg/100m3400 kgf
18 mm21.4 kg/100m4700 kgf
20 mm30.25 kg/100m5500 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
